Challenger V6-3.5L (2009)
Timing Belt Tensioner: Service and Repair
Engine Timing Tensioner - Installation
Tensioner Pulley Assembly

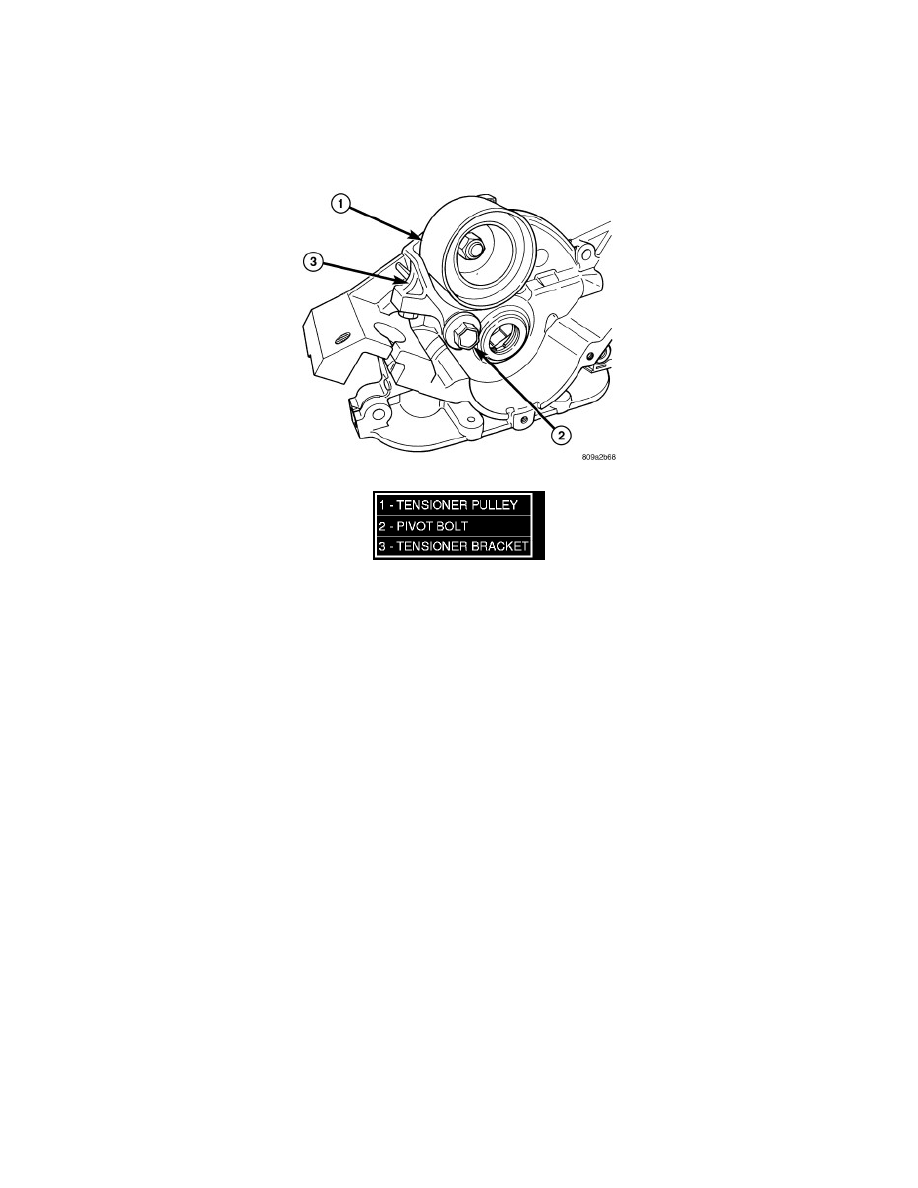

TENSIONER PULLEY ASSEMBLY
1. Install the timing belt tensioner pulley (1) assembly. Tighten the pivot bolt (2) to 61 Nm (45 ft. lbs.).
2. Install the timing belt. See: Timing Belt/Service and Repair/Removal and Replacement/Timing Belt & Sprockets - Installation
Tensioner
TENSIONER
1. The timing belt tensioner installation is part of the timing belt installation procedure See: Timing Belt/Service and Repair/Removal and
Replacement/Timing Belt & Sprockets - Installation.
