Challenger V6-3.5L (2009)
9. Remove the push-pin retainer (1) that secures the fresh air inlet housing (2) to the passenger side inner fender (6).
10. Disengage the wire harness retainer (3) from inside the bottom of the fresh air inlet housing, if equipped.
11. Remove the push-pin retainer (5) that secures the insulator (4) to the front of the fresh air inlet housing and position the insulator out of the way.

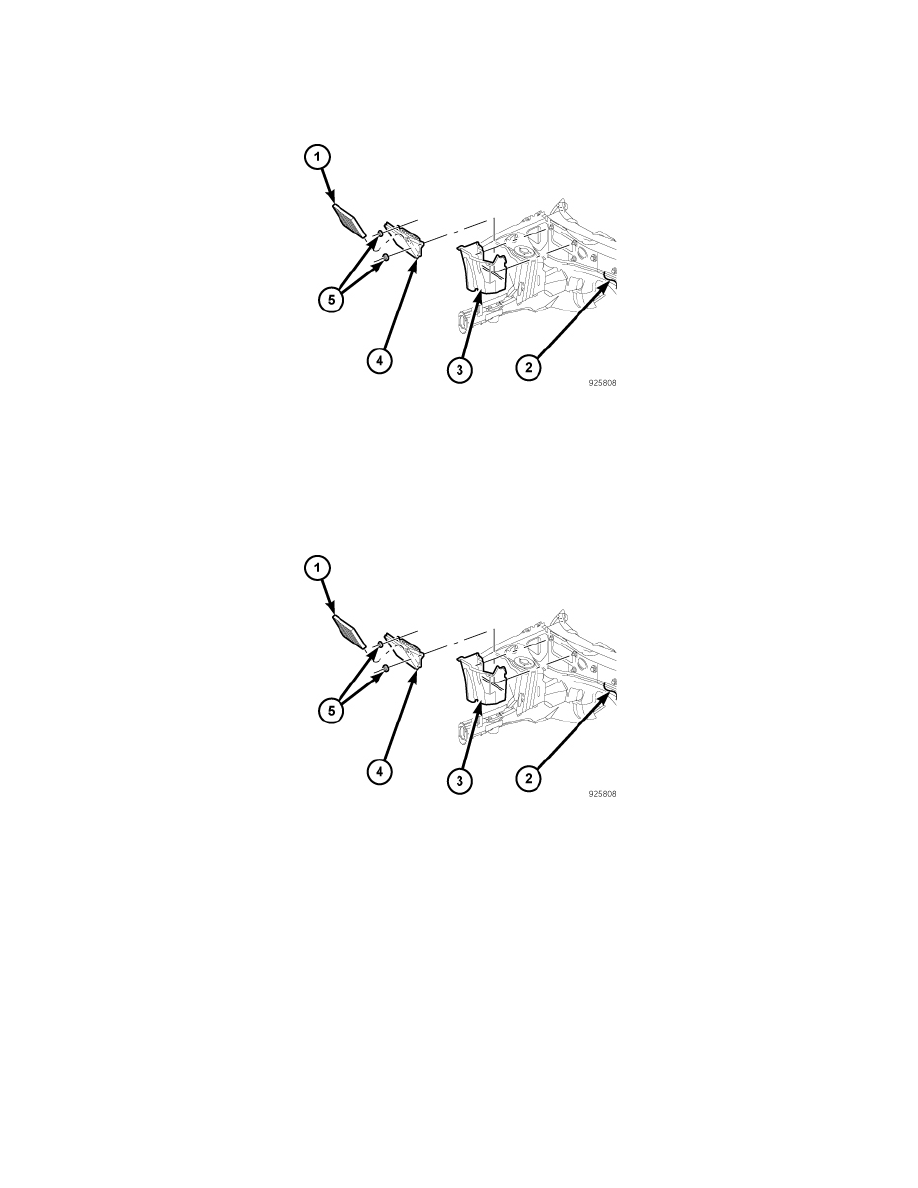

12. Remove the two nuts (5) that secure the fresh air inlet housing (3), particulate air filter (1) and filter housing (4) to the dash panel (2).
13. Remove the fresh air inlet housing, particulate air filter and filter housing as an assembly from the dash panel.
Fresh Air Inlet Housing Installation
HOUSING-FRESH AIR INLET
1. Position the fresh air inlet housing (3), particulate air filter (1) and filter housing (4) as an assembly onto the engine compartment side of the dash
panel (2).
2. Install the two nuts (5) that secure the fresh air inlet housing and filter housing to the dash panel. Tighten the nuts to 7 Nm (62 in. lbs.).
