Challenger V6-3.5L (2009)
second piece of tape placed vertically across the appropriate (head or fog) lamp horizontal reference. This is the centerline reference for the
second lamp.
HEADLAMP ALIGNMENT
There are two different kinds of headlamp aiming procedures:
-
Visual Aim Optical Left (VOL)
-
Visual Aim Optical Right (VOR)
The VOL or VOR is embossed on the lower front of each headlamp unit.
VOL HEADLAMP AIMING

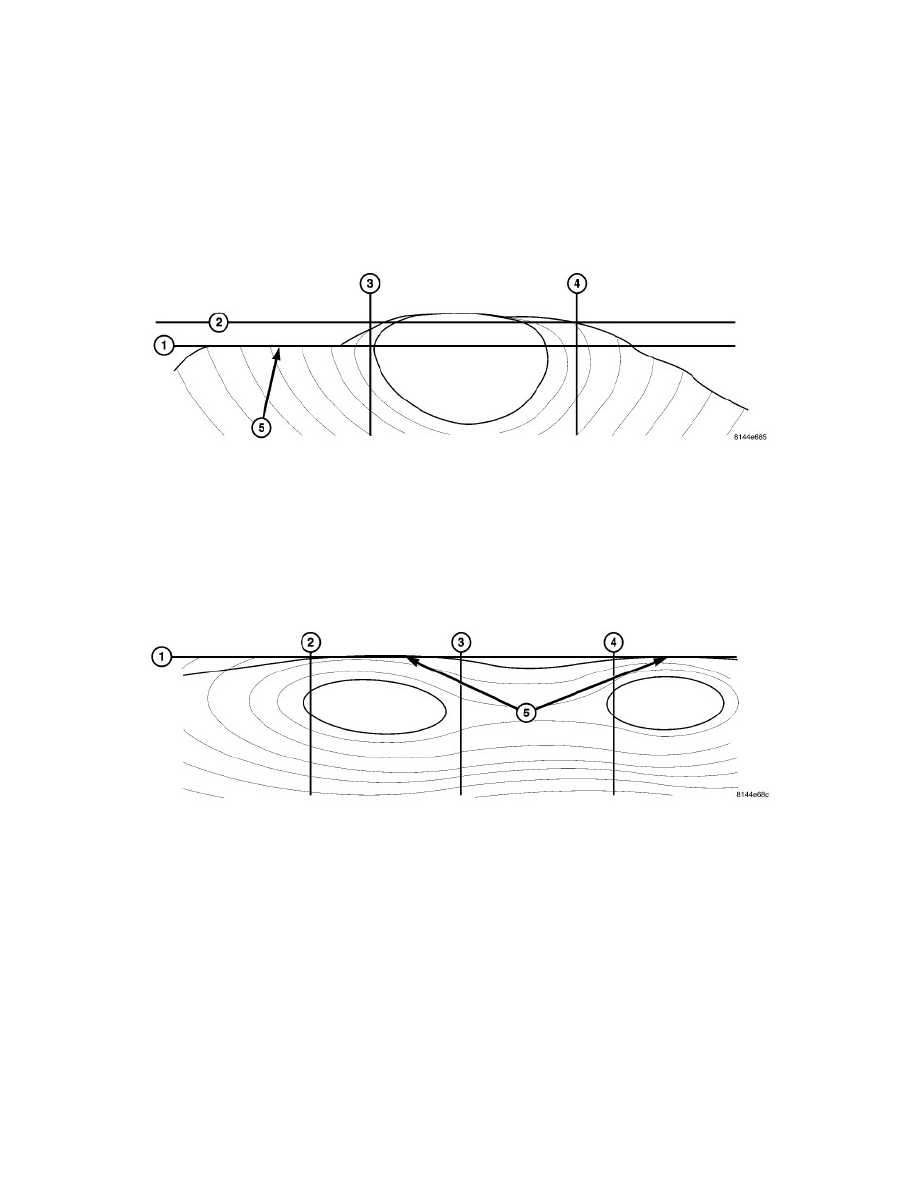

With the horizontal centerline of the headlamp (2) transferred on the wall, measure down 53 mm (2.1 in). This line (1) will be the vertical aiming mark.
Using the left side of the headlamp vertical centerline (3), adjust the headlamp unit so the residual light from the headlamp, not the hot spot, is even with
the line (1) that was marked previously 53 mm (2.1 in) below the horizontal centerline (2). The ideal alignment should be (5). The right headlamp aiming
will be the same, but using the area left of right headlamp vertical centerline (not shown).
1. Turn the headlamps on and select the low beams.
2. Rotate the headlamp vertical adjustment screw (horizontal on export) on each lamp to adjust the beam height as required.
VOR HEADLAMP AIMING
With the horizontal centerline of the headlamp (1) transferred on the wall, this line (1) will be the vertical aiming mark. Using the right side of the
headlamp vertical centerline (two for the left and four for the right), adjust the headlamp unit so the residual light from the headlamp is even with the
horizontal centerline (1). The ideal alignment should be (5).
1. Turn the headlamps On and select the Low beams.
2. Rotate the headlamp vertical adjustment screw (and horizontal on export) on each lamp to adjust the beam height as required.
FOG LAMP ALIGNMENT
A properly aimed front fog lamp projects a pattern on the alignment screen 100 millimeters (4 inches) below the fog lamp centerline and straight ahead
of the lamp.
