Challenger V6-3.5L (2009)

Page 1
background image

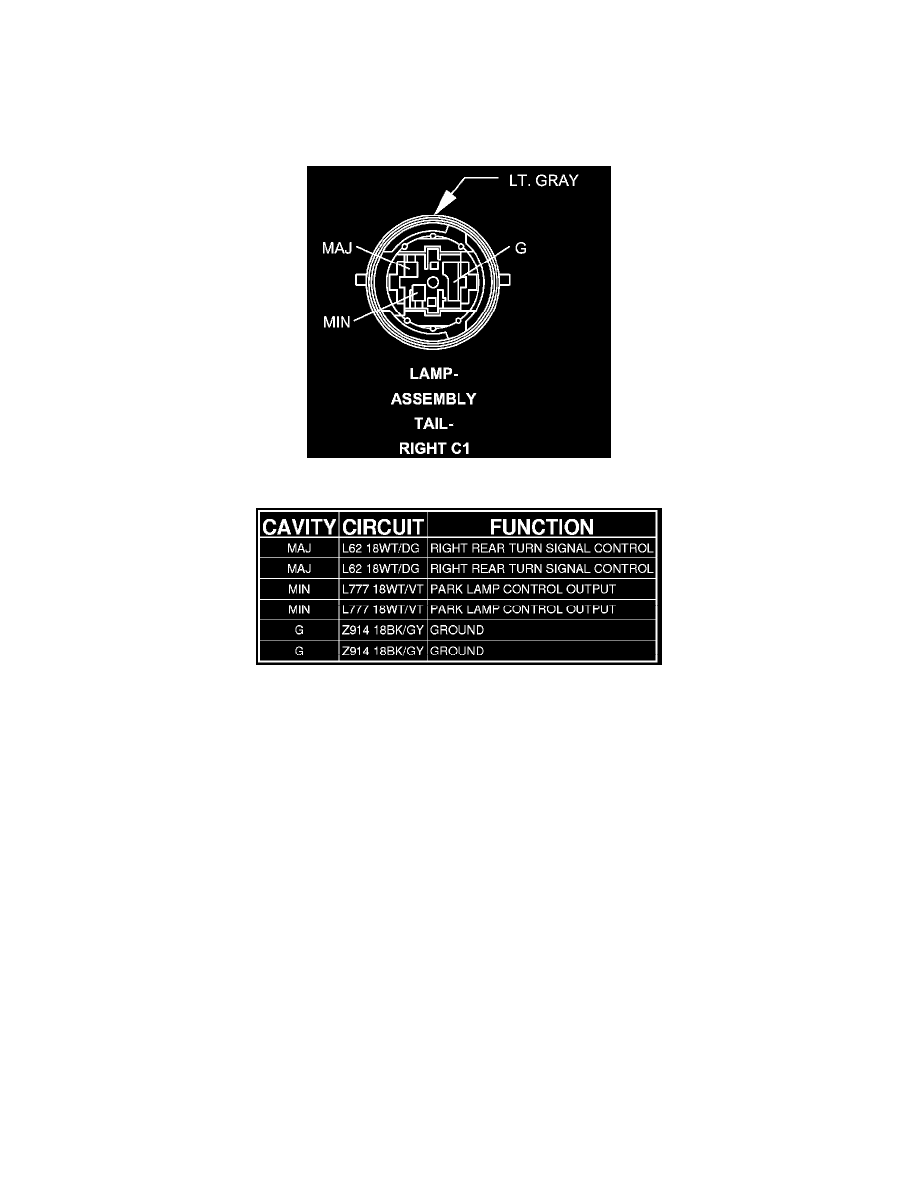

Parking Lamp: Diagrams
Right Tail Lamp Assembly C1 (Right Tail Lamp) 3 Way

Connector C1 - (RIGHT TAIL LAMP) 3 WAY



 LAMP-ASSEMBLY TAIL-RIGHT - (RIGHT TAIL LAMP) 3 WAY
