Challenger V6-3.5L (2009)
Power Distribution Module: Diagrams

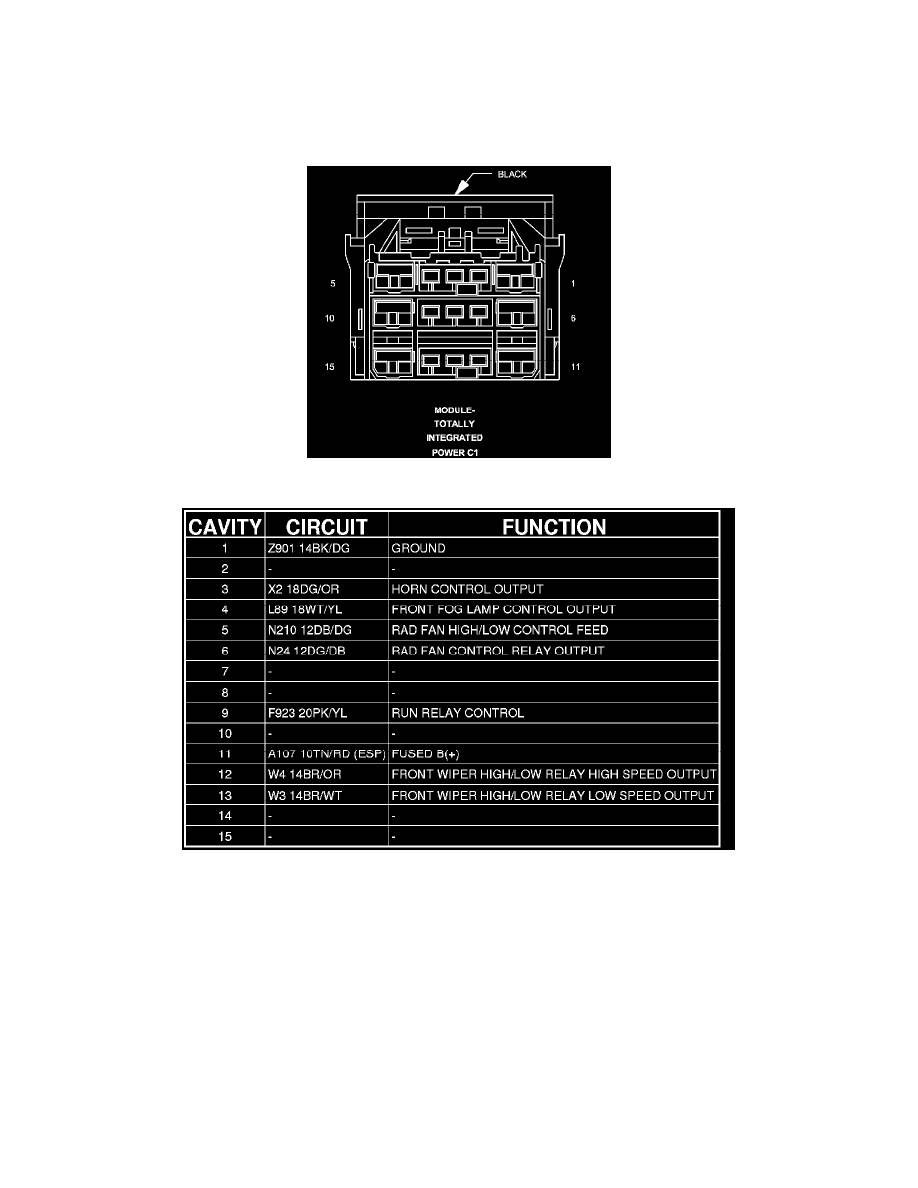

Module - Totally Integrated Power C1
Connector C1 - (HEADLAMP AND DASH) 15 WAY
MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 15 WAY
Dodge Workshop Service and Repair Manuals
Module - Totally Integrated Power C1|Page 6115 >
< Totally Integrated Power Module (3.5L)|Page 6112
Page 1
