Challenger V6-3.5L (2009)

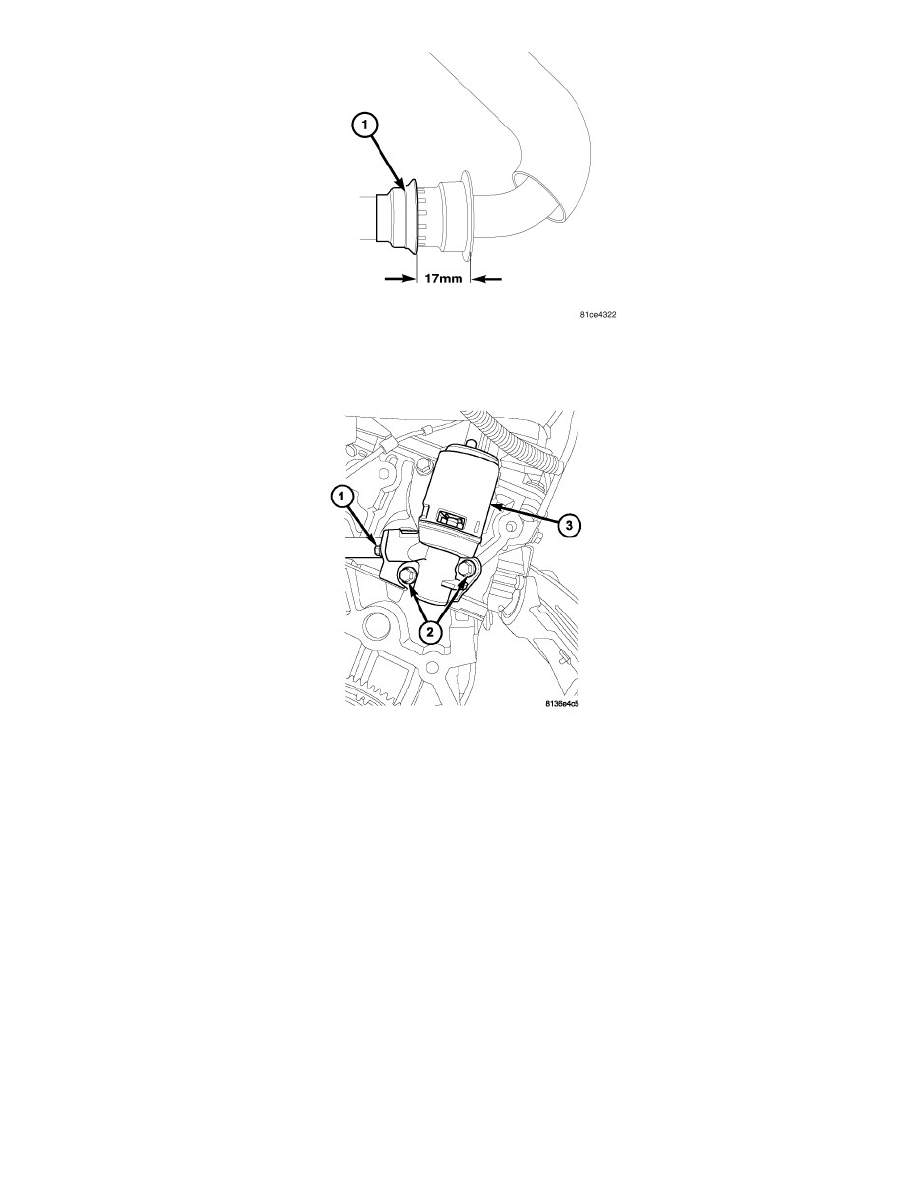

NOTE: When removing the EGR tube, be careful not to drop the silicone rubber seal (1) into the intake manifold. Replace the EGR tube
gasket and silicone rubber seal any time the EGR tube is removed from the intake manifold.
9. Remove the EGR valve mounting bolts (2) and remove the EGR valve from vehicle.
CAUTION: Do not allow debris to enter the EGR valve when cleaning the mounting surface. Debris can lodge between the pintle and the seat
causing valve leakage that results in rough idle and depressed manifold vacuum.
10. Clean the mounting surface.
