Challenger V6-3.5L (2009)

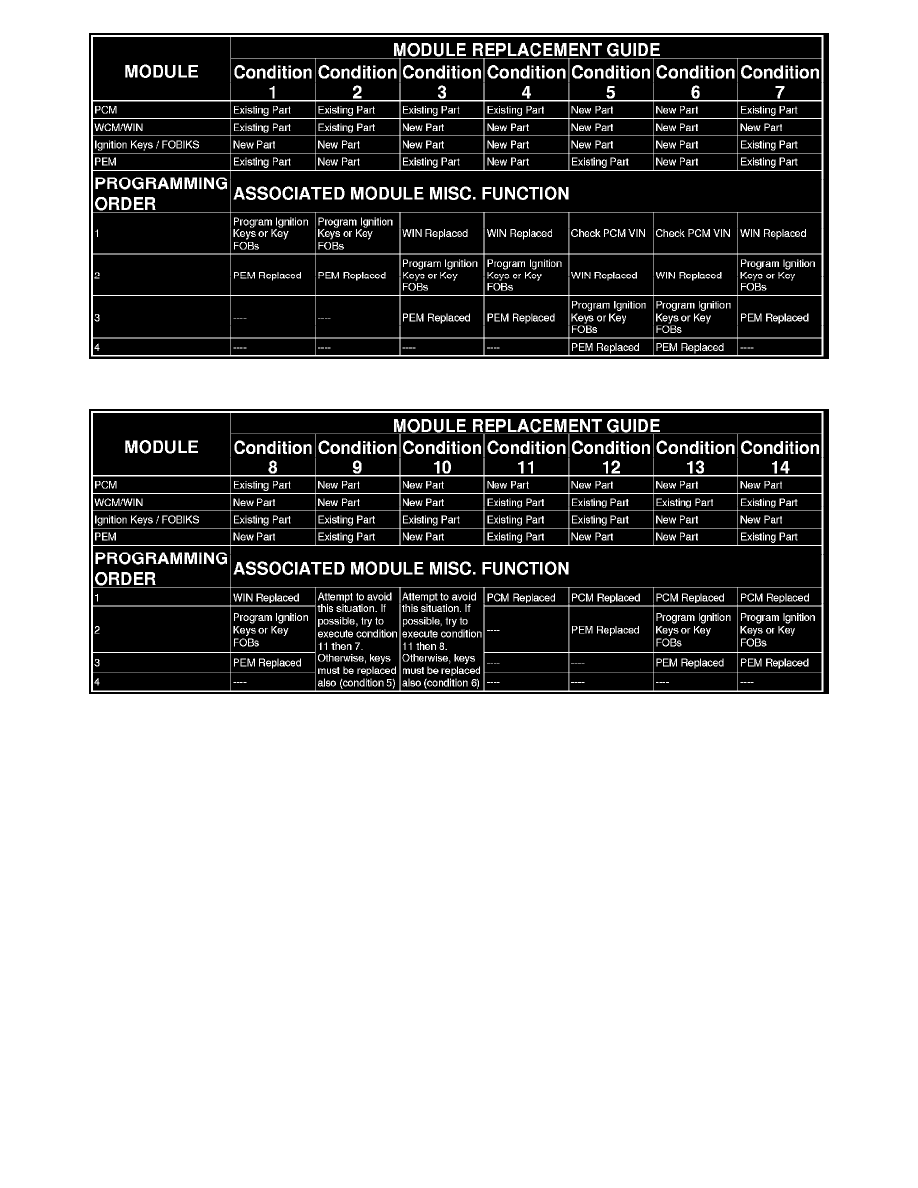

WIN WITH PEM MODULE, CONTINUED CONDITION 8 - 14
Module Programming
MODULE PROGRAMMING
The Wireless Ignition Node (WIN) controls the Vehicle Theft Security System (VTSS), Remote Keyless Entry (RKE). When a Powertrain Control
Module (PCM) is in need of replacement, perform the following steps in order:
NOTE: The PCM and the WIN should never be replaced at the same time. They should be replaced independently of each other.
1. If applicable, first replace the PCM with the original WIN still connected to the vehicle.
2. Using a scan tool program the new PCM. (This will ensure the transfer of the Secret Key data from the original WIN into the new PCM).
3. Replace the WIN, using the scan tool program the new WIN module. This will transfer the Secret Key data from the PCM into the new WIN.
4. With the scan tool reprogram the key FOBIK to the new WIN.
5. Ensure all the customer's keys have been programmed to the new module.
NOTE: If the original keys do not successfully program to the new WIN after the proper procedures are followed correctly, programming
new keys will be necessary.
PROGRAMMING THE SECRET KEY TO THE WIN
The secret key is an ID code that is unique to each WIN. This code is programmed and stored in the WIN, the PCM, and each ignition key transponder
chip. When the PCM or WIN is replaced, it is necessary to program the Secret Key Code into the new module using a diagnostic scan tool. Follow the
programming steps outlined in the diagnostic scan tool for PCM REPLACED, WIN REPLACED, or TIPM REPLACED under
MISCELLANEOUS FUNCTIONS for the WIRELESS CONTROL MODULE menu item as appropriate.
