Challenger V6-3.5L (2009)
Fluid Pressure Sensor/Switch: Service and Repair
Transmission Solenoid and Pressure Switch Assembly - Installation
INSTALLATION
NOTE: If the Solenoid/Pressure Switch assembly is being replaced, the Quick Learn Procedure must be performed. See: Computers and
Control Systems/Testing and Inspection/Programming and Relearning/TCM Adaptation

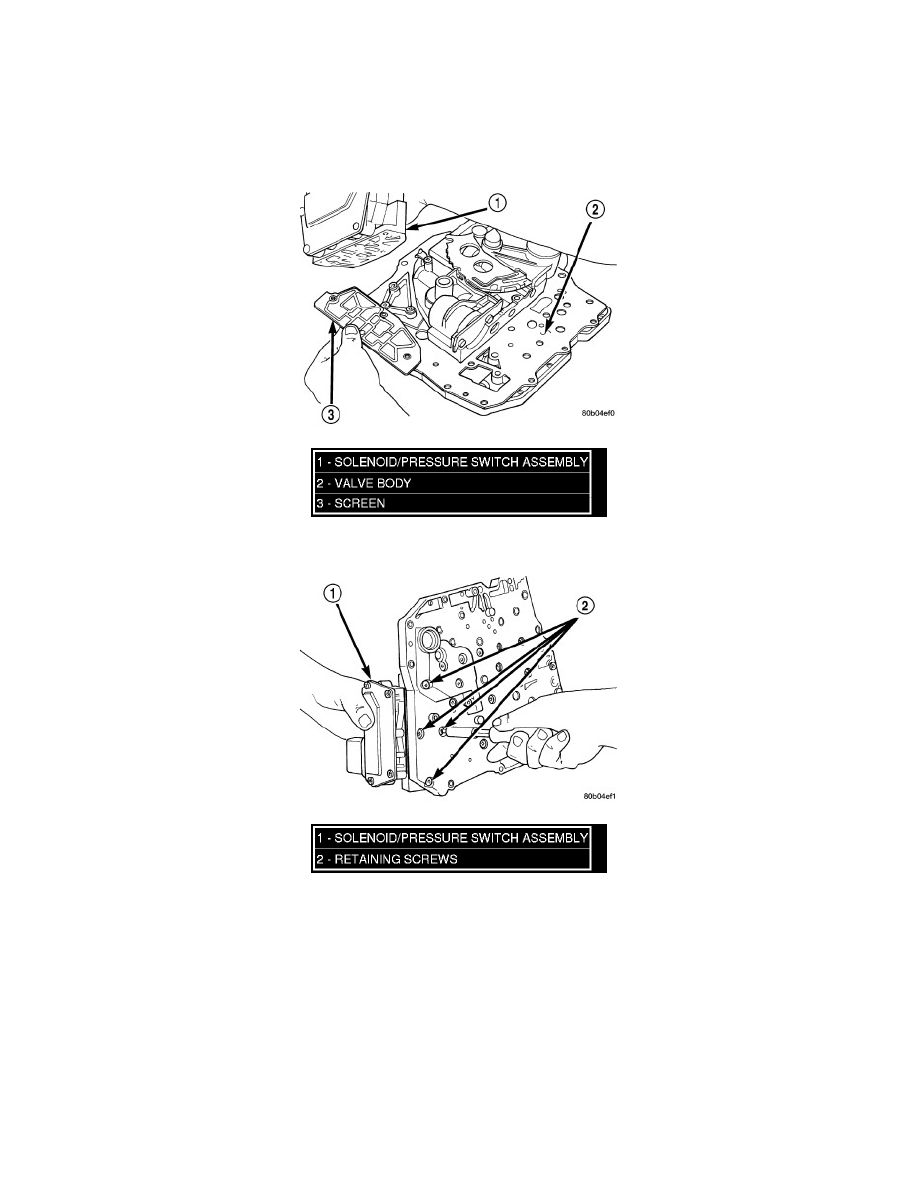

1. Install Solenoid/Pressure Switch Assembly (1) and screen (3) to the separator and transfer plates.
2. Install and tighten retaining screws (2) to 5.5 Nm (50 in. lbs.) torque.
3. Install valve body. See: Transmission and Drivetrain/Automatic Transmission/Transaxle/Valve Body/Service and Repair/Removal and
Replacement/42RLE Automatic Transmission/Valve Body - Installation
