Challenger V6-3.5L (2009)
Seat Heater Control Module: Service and Repair
Heated Seat Module - Installation
INSTALLATION

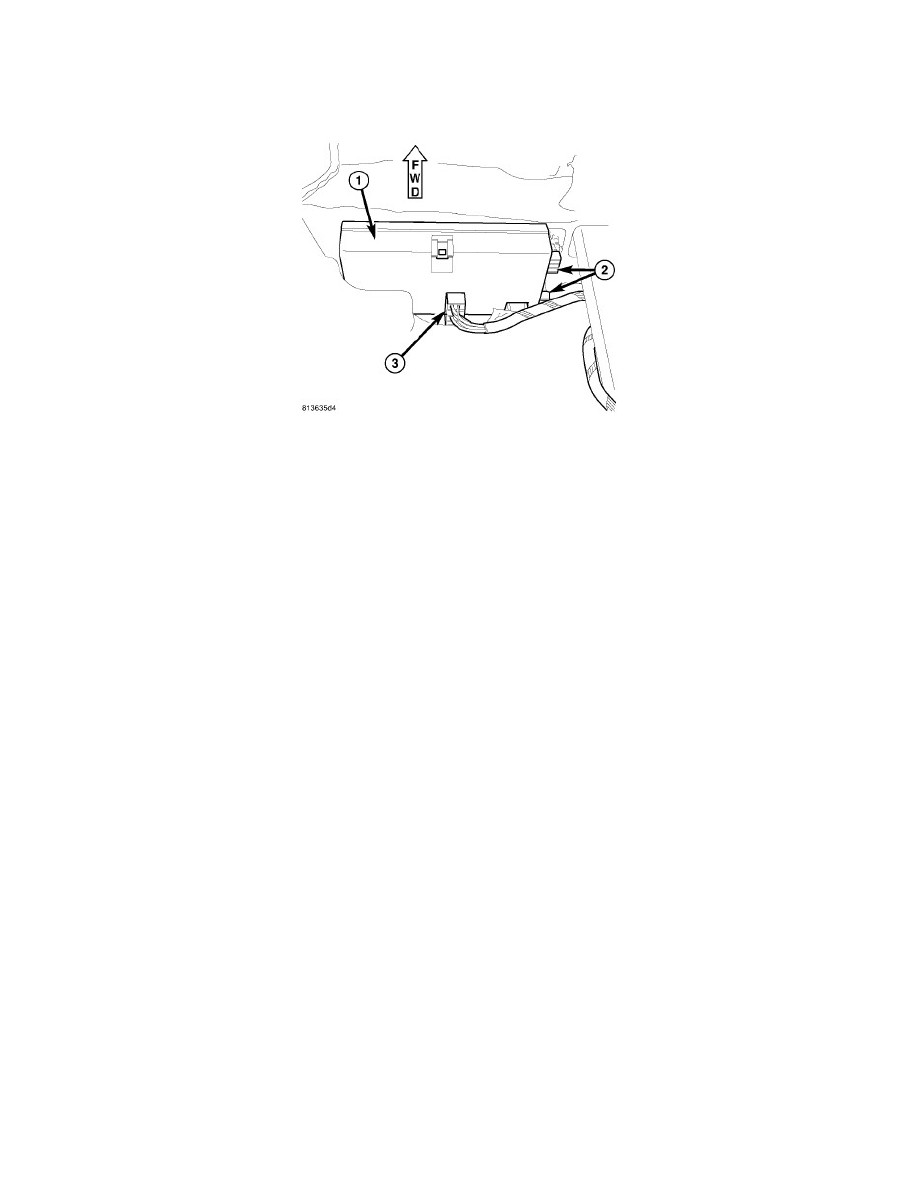

1. Install the heated seat module (3) into the vehicle.
2. Position the tab into the hole in the floor crossmember. Firmly apply even pressure to the heated seat module (3) until the retaining clips (2) snap
into place.
3. Connect the electrical connector (3) to the heated seat module (1).
4. Reposition the front carpet assembly.
5. Install the right front seat.See: Body and Frame/Seats/Service and Repair/Seat - Installation.
6. Connect the battery negative cable.
7. Check for proper heated seat system operation.
