Challenger V6-3.5L (2009)
Seat Belt Buckle: Service and Repair

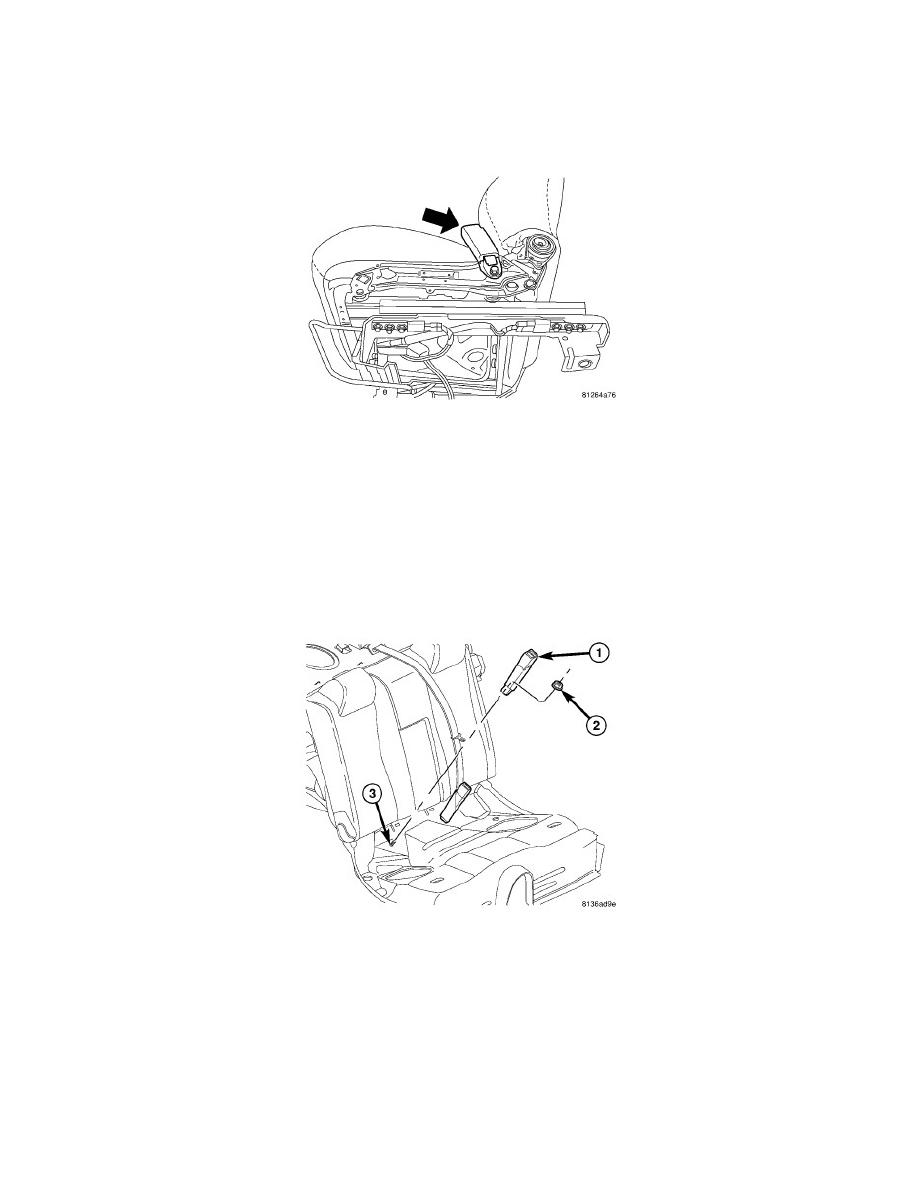

Seat Belt Buckle - Removal
REMOVAL
FRONT SEAT BELT BUCKLE
1. Disconnect and isolate the battery negative cable.
WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service.
Failure to do so may result in accidental airbag deployment, which may result in serious or fatal injury.
2. Remove center console from vehicle See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Floor Console - Removal.
3. Remove the inner side shield from the front seat cushion.
4. Disconnect the one electrical connector.
5. Remove the one nut to the buckle assembly.
REAR SEAT BELT BUCKLE
1. Remove the rear seat cushion See: Body and Frame/Seats/Seat Cover/Service and Repair/Seat Cushion Cover - Removal.
2. Remove the one nut (2) to the seat belt buckle.
