Impact Sensor: Diagrams
Left Side Impact Pressure Sensor (Front Door) 2 Way

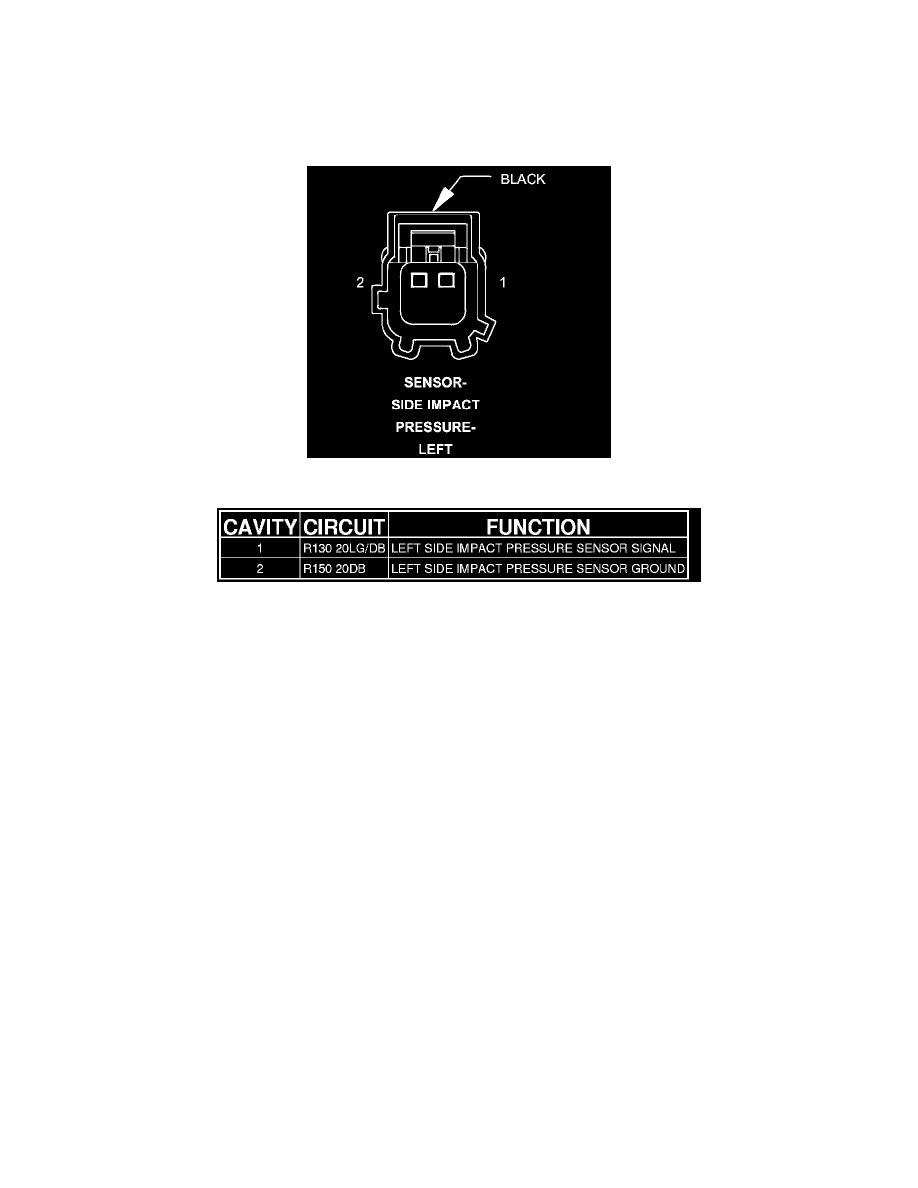

Connector - (FRONT DOOR) 2 WAY



 SENSOR-SIDE IMPACT PRESSURE-LEFT - (FRONT DOOR) 2 WAY
