Challenger V6-3.5L (2009)

Page 1
background image

Power Distribution Module: Diagrams

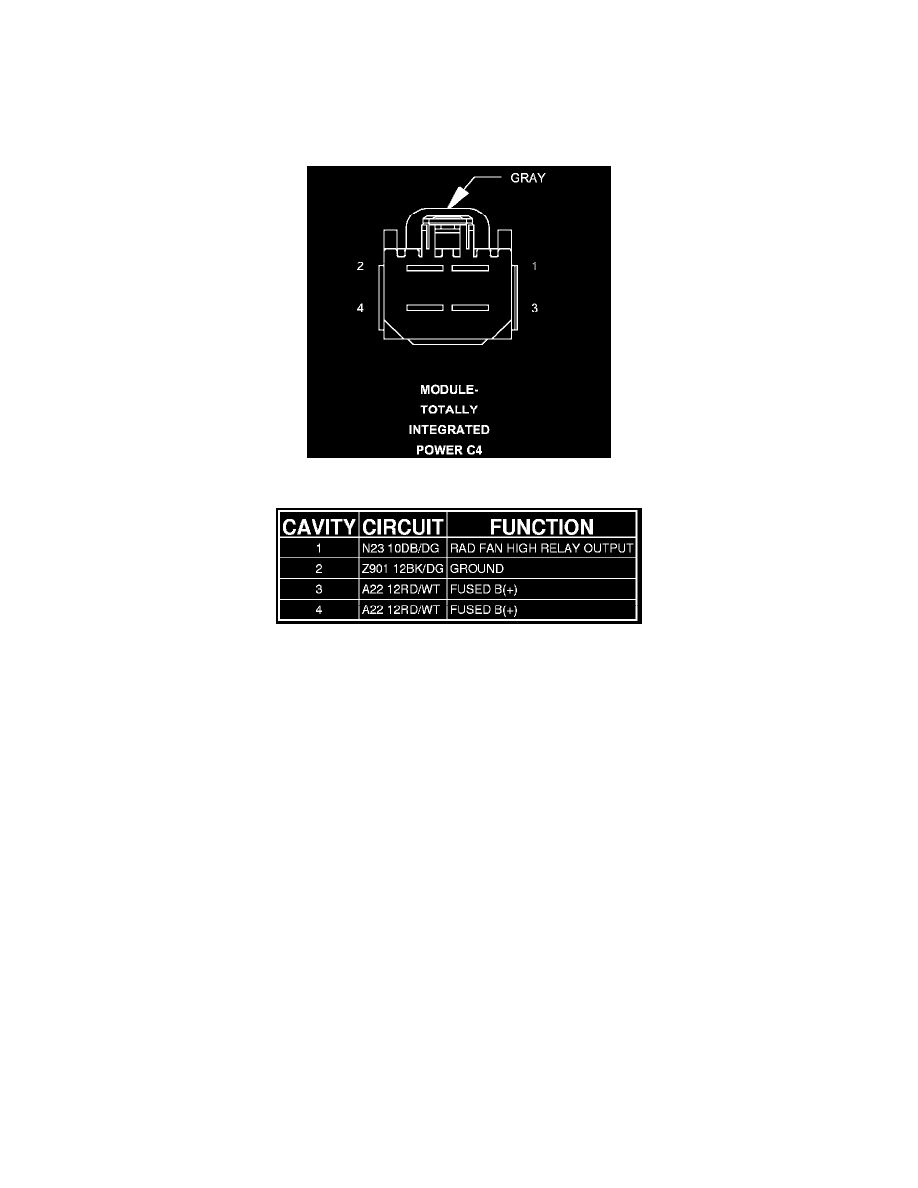

Module - Totally Integrated Power  C4

Connector C4 - (HEADLAMP AND DASH) 4 WAY



 MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 4 WAY
