Page 7

background image

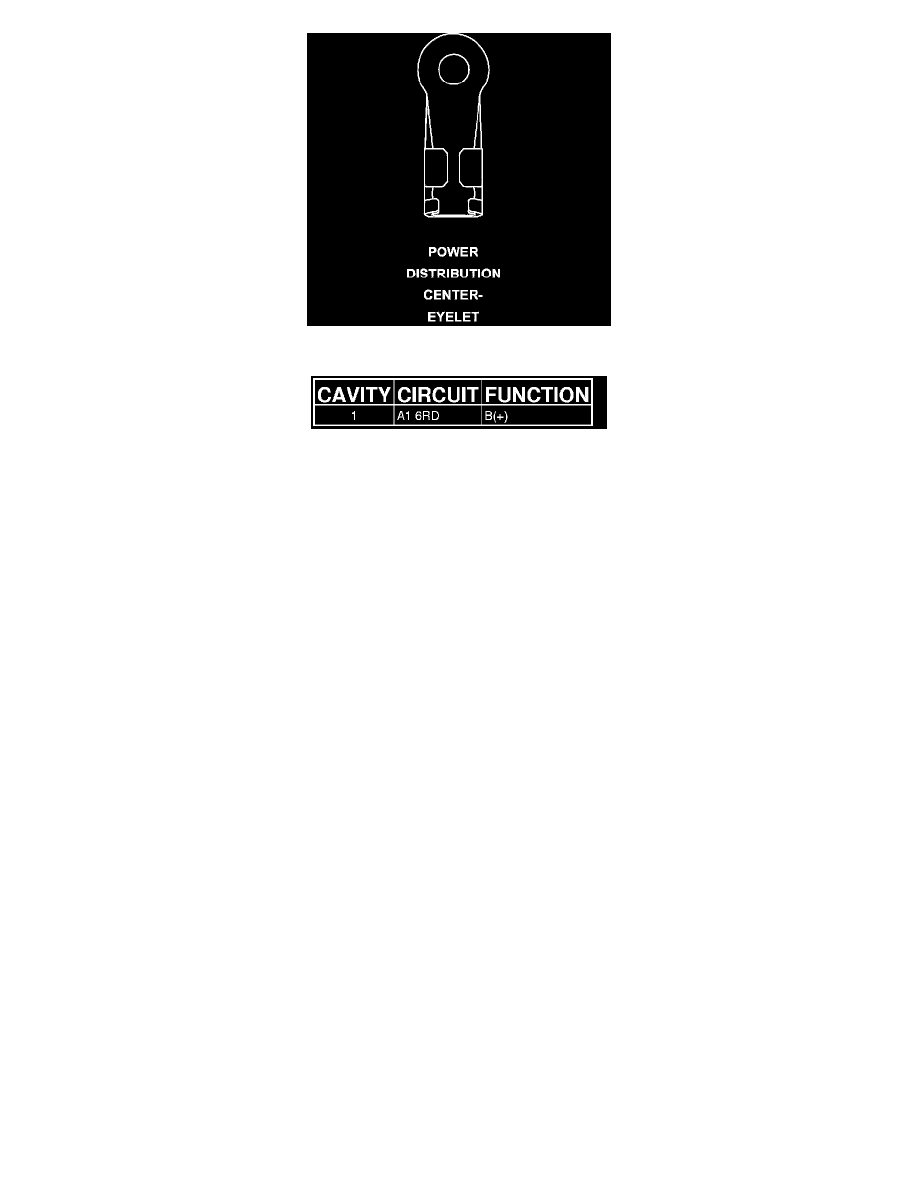

POWER DISTRIBUTION CENTER - (BATTERY POSITIVE) 1 WAY

Starting and Charging
Power and Ground Distribution
Power Distribution Module / Component Information
Diagrams / Module - Totally Integrated Power C1
Page 5853
