Challenger V6-3.5L (2009)
INSTALLATION

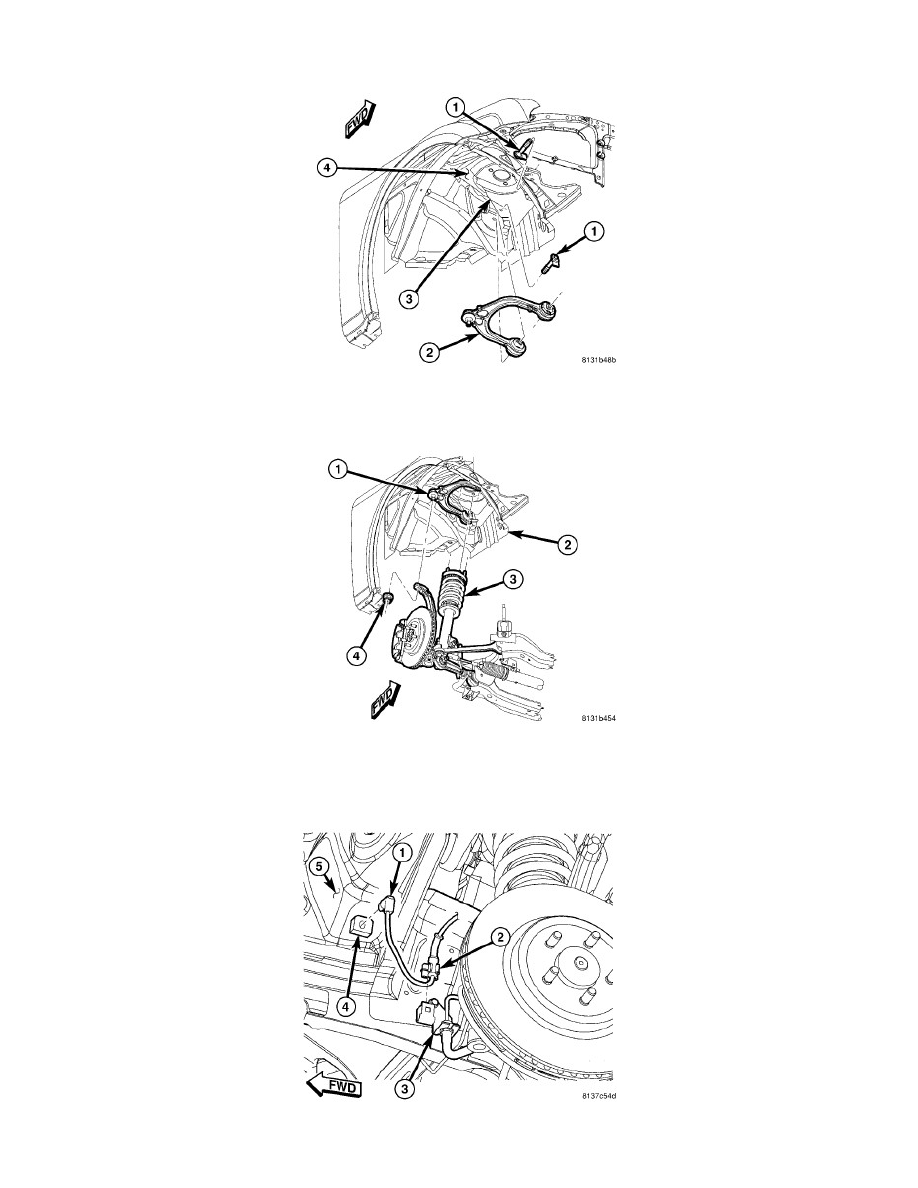

1. Slide upper control arm (2) into bracket (3) located in shock tower (4).
2. Install upper control arm mounting (flag) bolts (1) through bracket, arm and tower. Position flags on bolt heads outward, toward wheel opening.
3. Move shock assembly (3) allowing studs to be inserted through shock tower (2) mounting holes.
4. Place upper ball joint stud (1) through hole in top of knuckle and install nut (4). Tighten nut by holding ball joint stud with a hex wrench while
turning nut with a wrench. Tighten nut using crow-foot wrench on torque wrench to 47 Nm + 90° turn (35 ft. lbs. + 90° turn).
5. Connect wheel speed sensor cable routing clip (2) at brake tube bracket (3).
