Challenger V6-3.5L (2009)
Stabilizer Bar: Service and Repair
Front Stabilizer Bar - Removal
REMOVAL
1. Raise and support vehicle, See: Wheels and Tires/Vehicle Lifting/Service and Repair
2. Remove belly pan. See: Body and Frame/Exterior Moulding / Trim/Underbody Cover/Service and Repair/Belly Pan - Removal.

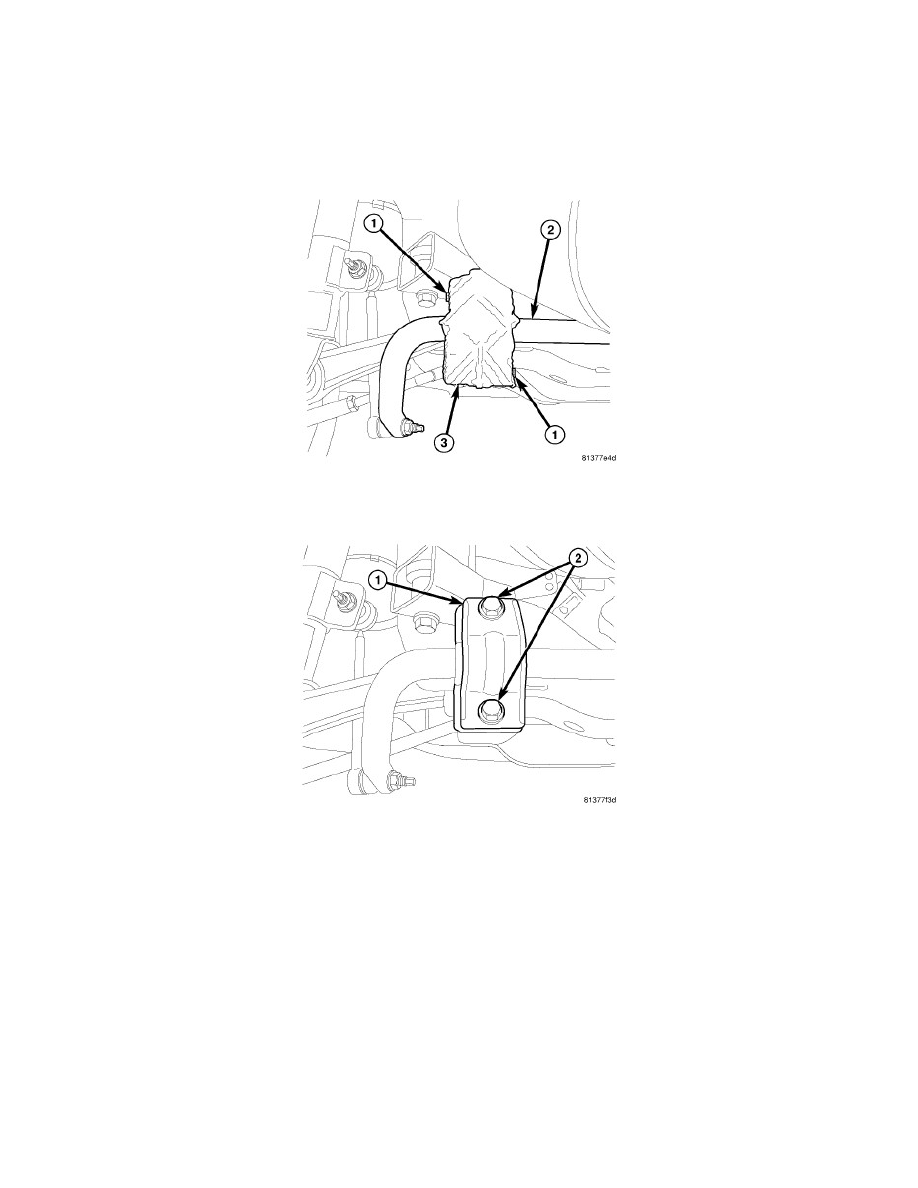

3. On each side of vehicle, remove screws (1) fastening stabilizer bar heat shield (3). Remove heat shield.
4. On each side of vehicle, remove bolts (2) fastening stabilizer bar isolator retainer (1) in place.
