Challenger V6-3.5L (2009)
Fluid Pressure Sensor/Switch: Service and Repair
Variable Line Pressure Sensor - Removal
REMOVAL
1. Remove the valve body from the transmission. See: Valve Body/Service and Repair/Removal and Replacement/42RLE Automatic
Transmission/Valve Body - Removal

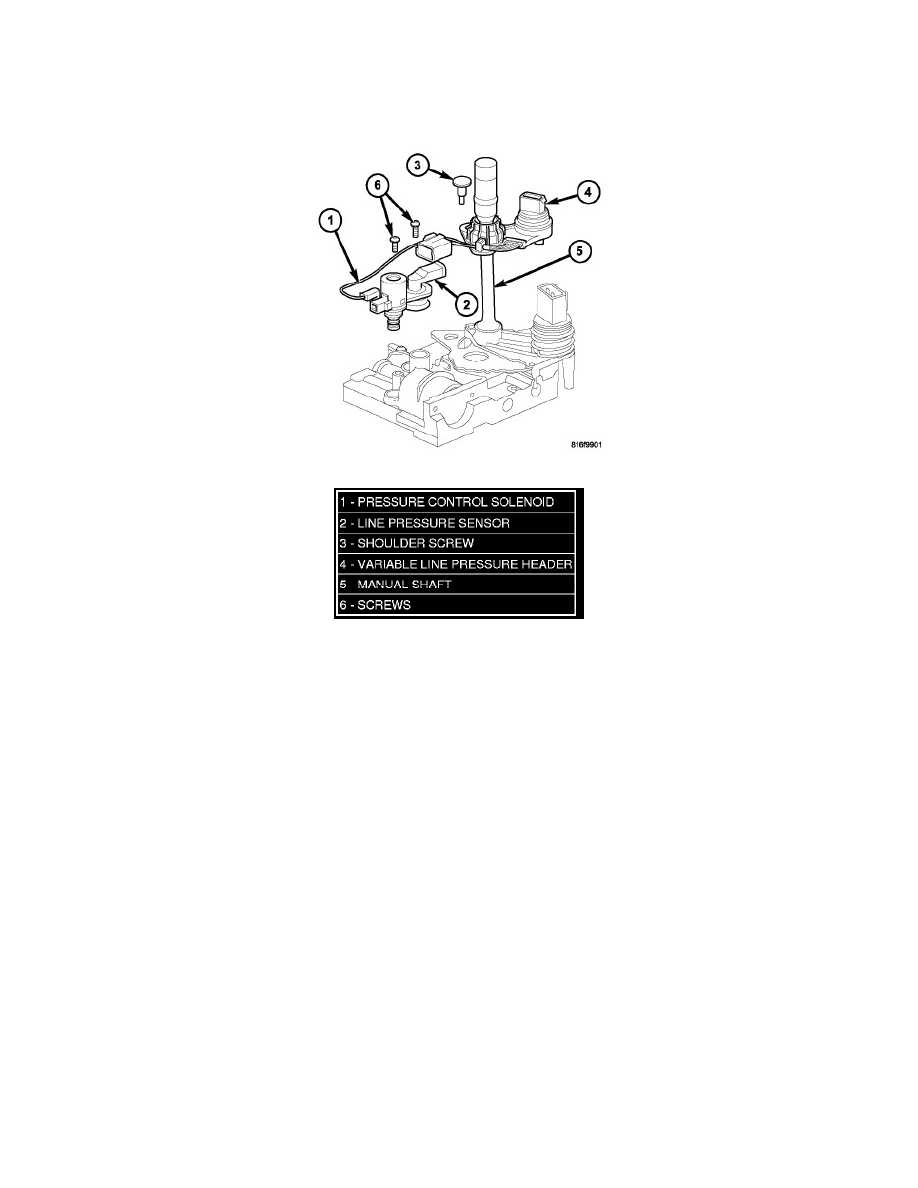

2. Remove the electrical connectors from the pressure control solenoid (1) and the line pressure sensor (2).
3. Remove the screws (6) holding the pressure control solenoid (1) and line pressure sensor (2) to the valve body.
4. Remove the pressure control solenoid and line pressure sensor from the valve body.
