Challenger V6-3.5L (2009)

Page 26
background image

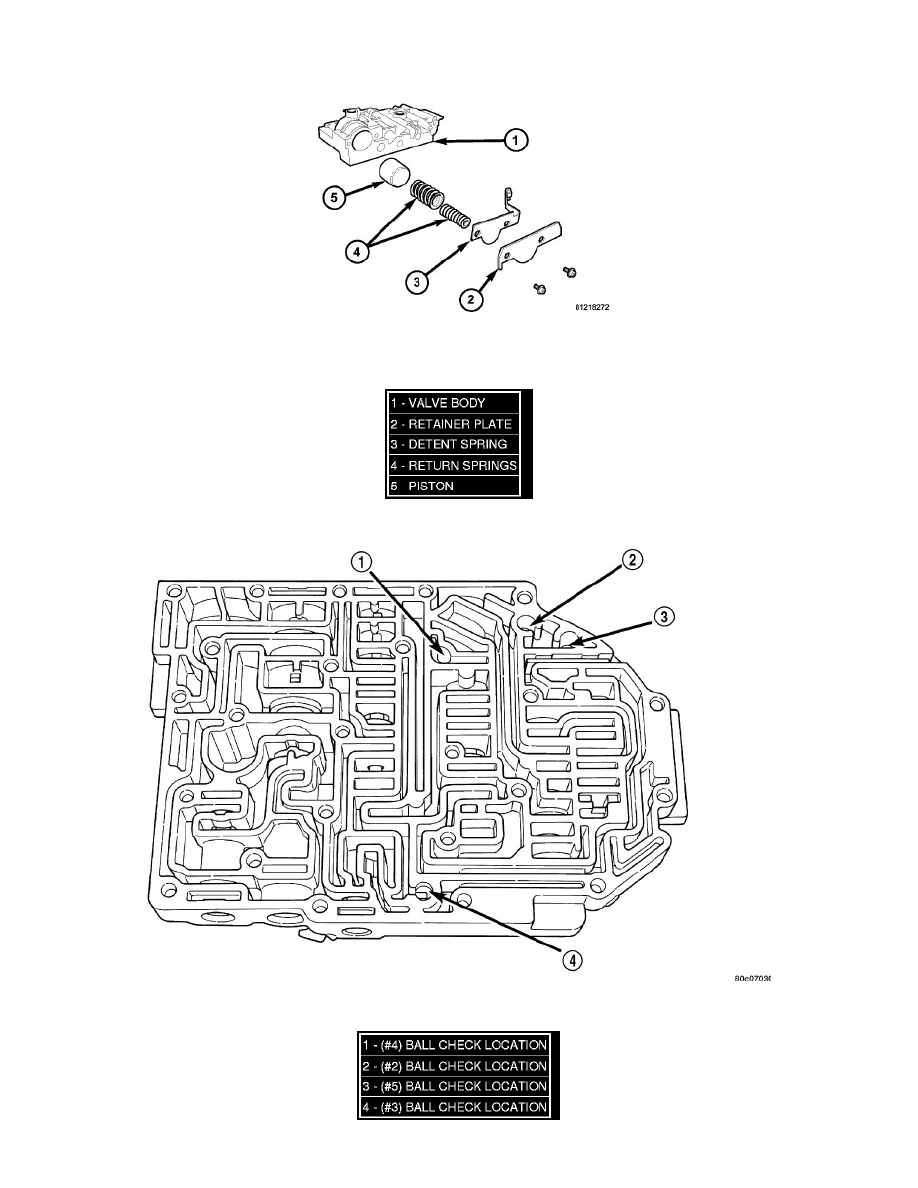

5. Install 2/4 Accumulator components (1-5) as shown. Torque 2/4 Accumulator retainer plate to 5 Nm (45 in. lbs.).

Ball Check Location
