Charger V6-2.7L (2008)

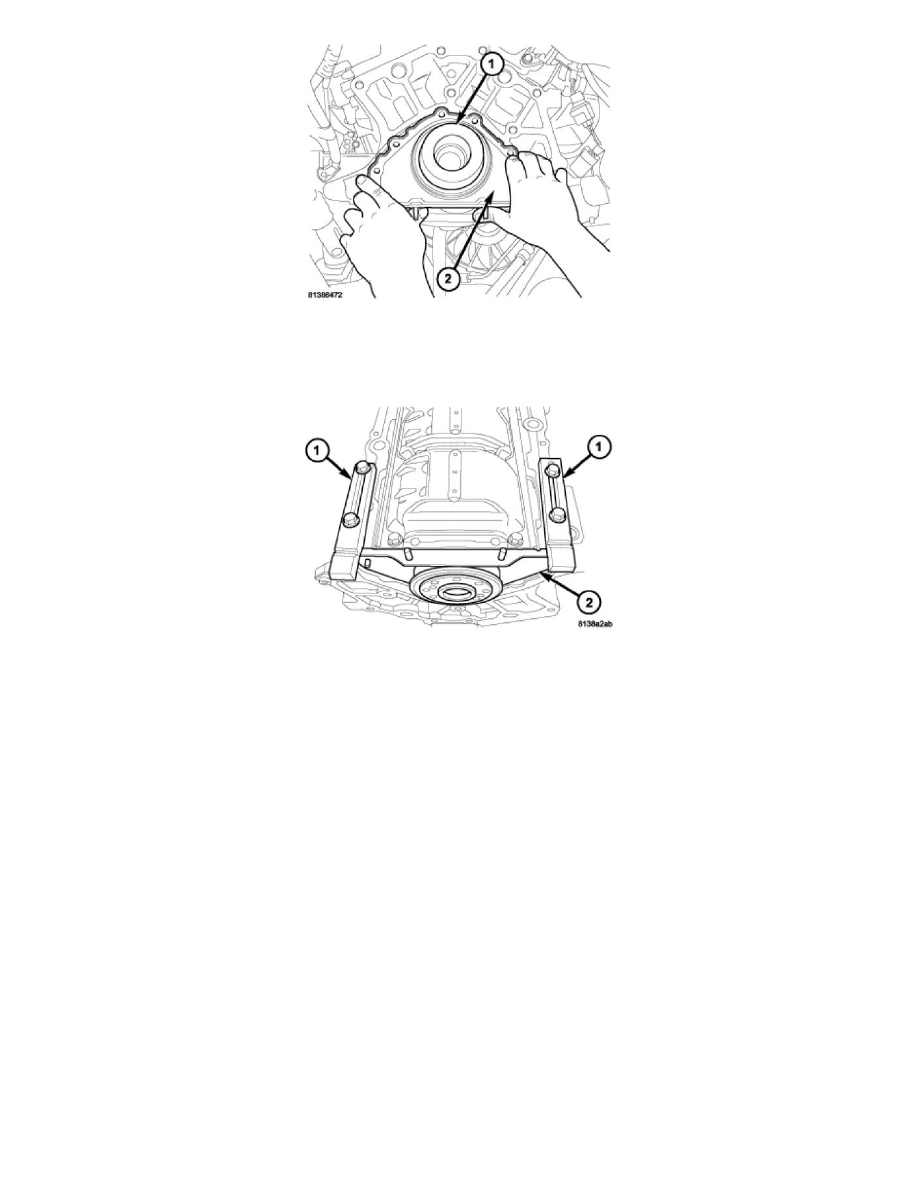

3. Position the special tool 6926 (1) onto the crankshaft and gently slide the seal (2) over the crankshaft.
4. Install seal retaining bolts finger tight.
NOTE: The following steps must be performed to prevent oil leaks at sealing joints.
5. Attach Special Tools 8225 (1) to pan rail using the oil pan fasteners.
NOTE: Make sure that the "2.7L" stamped on the special tool is facing the cylinder block (flat side of tools against pan rail).
NOTE: Make sure that the seal flange is flush with the block oil pan sealing surface.
6. While applying firm pressure to the seal assembly (2) against Special Tools 8225 (1), tighten seal assembly screws to 12 Nm (105 in. lbs.).
7. Remove special tool 8225.
8. Install oil panSee: Engine Lubrication/Oil Pan/Service and Repair/Engine Oil Pan - Installation.
