D50/Power Ram 50 V6-181 3.0L SOHC (1991)
Fuel Return Line: Description and Operation

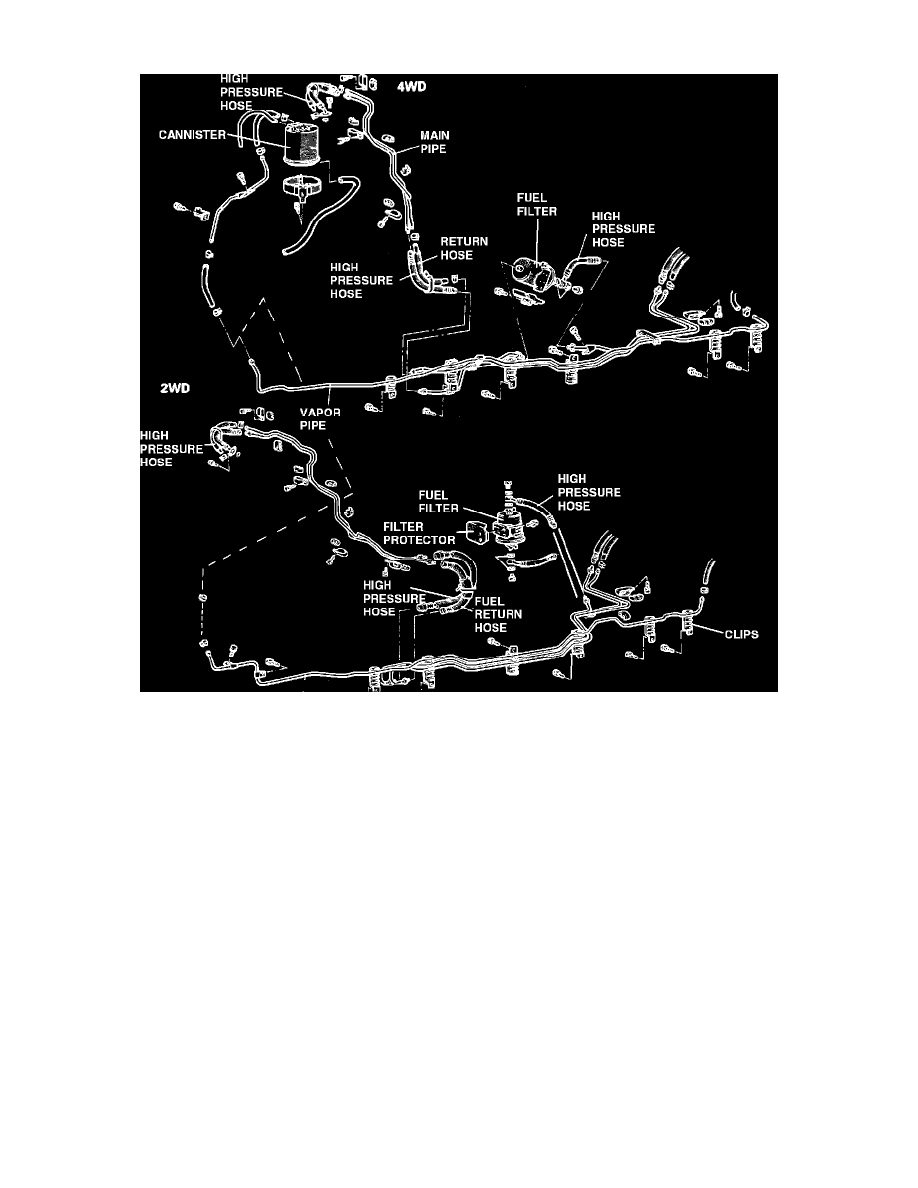

Fuel And Vapor Line Routing
FUEL SUPPLY LINE
The fuel supply line delivers fuel from a high pressure electric fuel pump (mounted in the fuel tank), to the in-line fuel accumulator and then from the
accumulator to the in-line fuel filter. It is then delivered to the fuel pressure regulator mounted on the fuel delivery pipe. The steel line is fitted in place
with threaded pressure fittings.
