D50/Power Ram 50 V6-181 3.0L SOHC (1991)

Page 1
background image

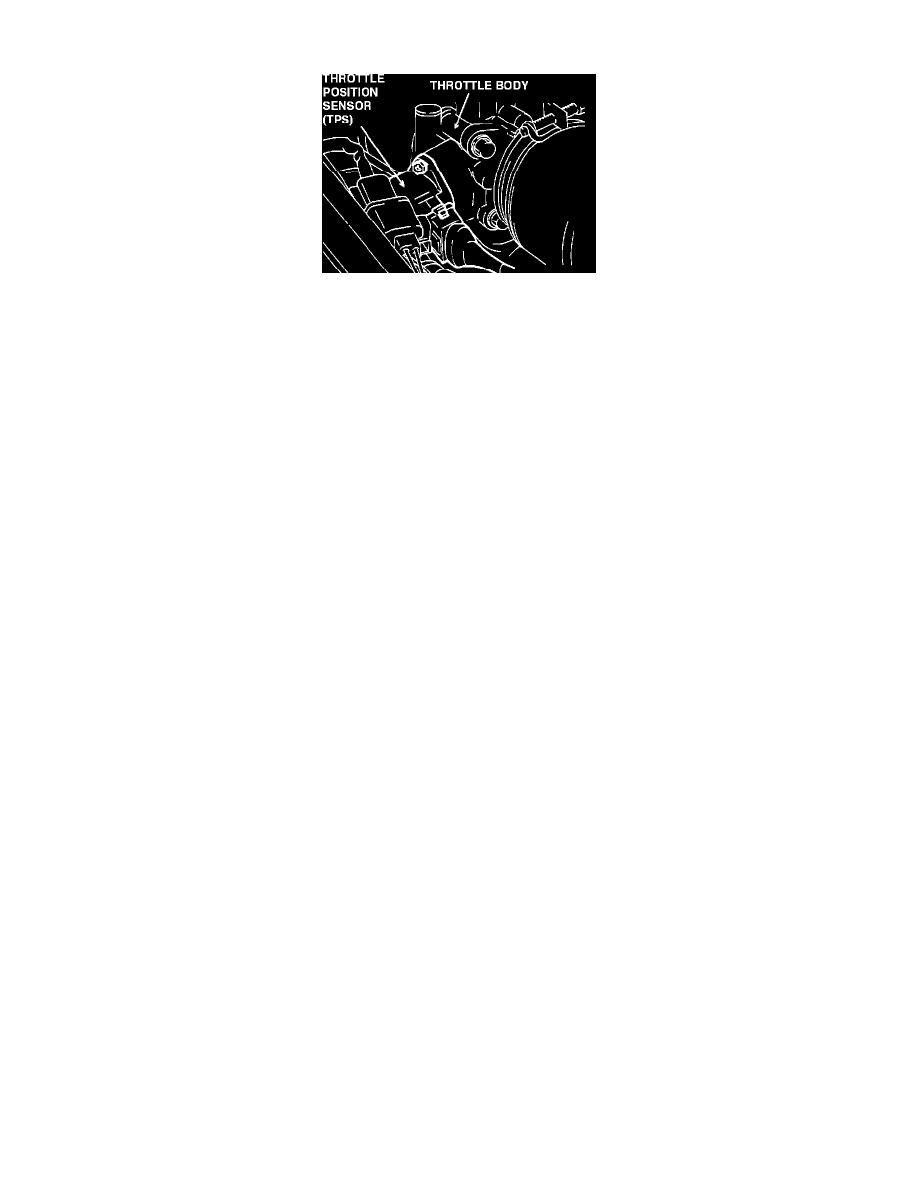

Throttle Position Sensor: Locations

Throttle Position Sensor Location

The throttle position sensor is mounted on the throttle body.
