Page 7
background image

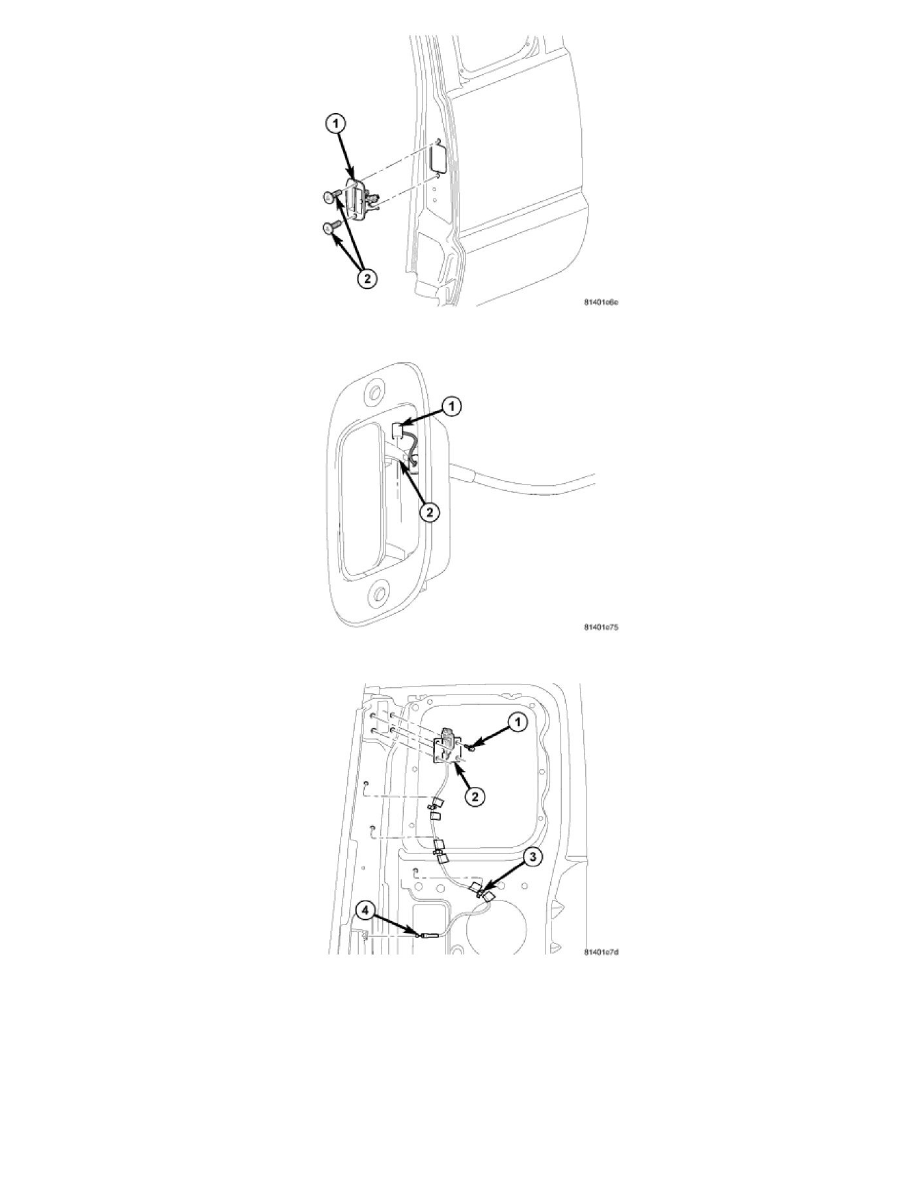

2. Remove the screws (2) and separate the door handle (1) from the door.

3. Disconnect the upper cable (1) from the door handle (2).

4. Separate the push pin hangers (3) from the door and separate the cable.

5. Remove the four screws (1) and remove the latch assembly (2) from the door.

Installation

INSTALLATION
