Dakota 2WD V8-4.7L VIN P Flex Fuel (2007)
Hydraulic Control Assembly - Antilock Brakes: Service and Repair
Removal
REMOVAL
1. Disconnect the battery cables from the battery.

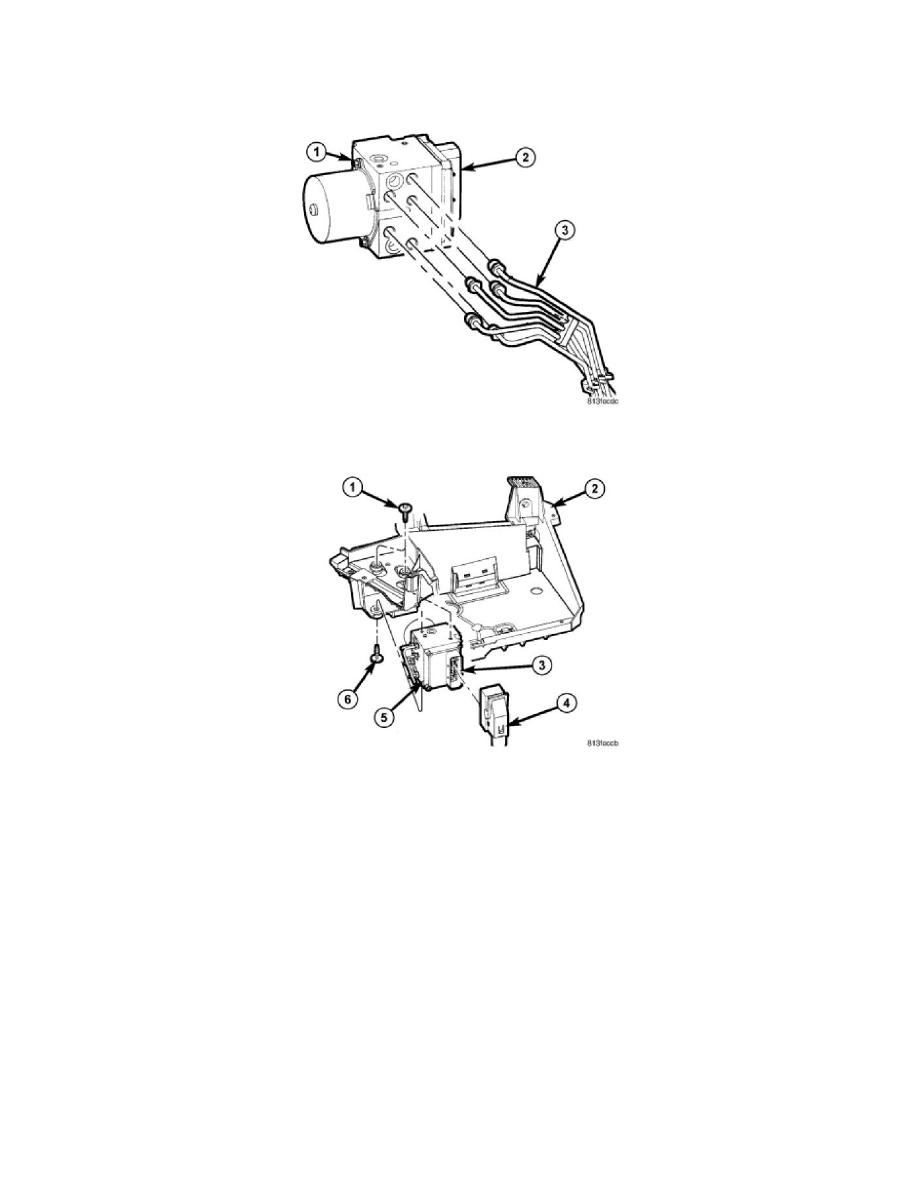

2. Disconnect the brake lines (3) to the HCU (1).
3. Disconnect the electrical harness connector (4).
4. Remove HCU assembly (5) mounting bolts (1&6).
5. Raise and support the vehicle.
6. Lift the HCU assembly (5) off the battery tray (2).
7. Remove the HCU assembly (5) from the vehicle.
