Dakota 2WD V8-4.7L VIN P Flex Fuel (2007)

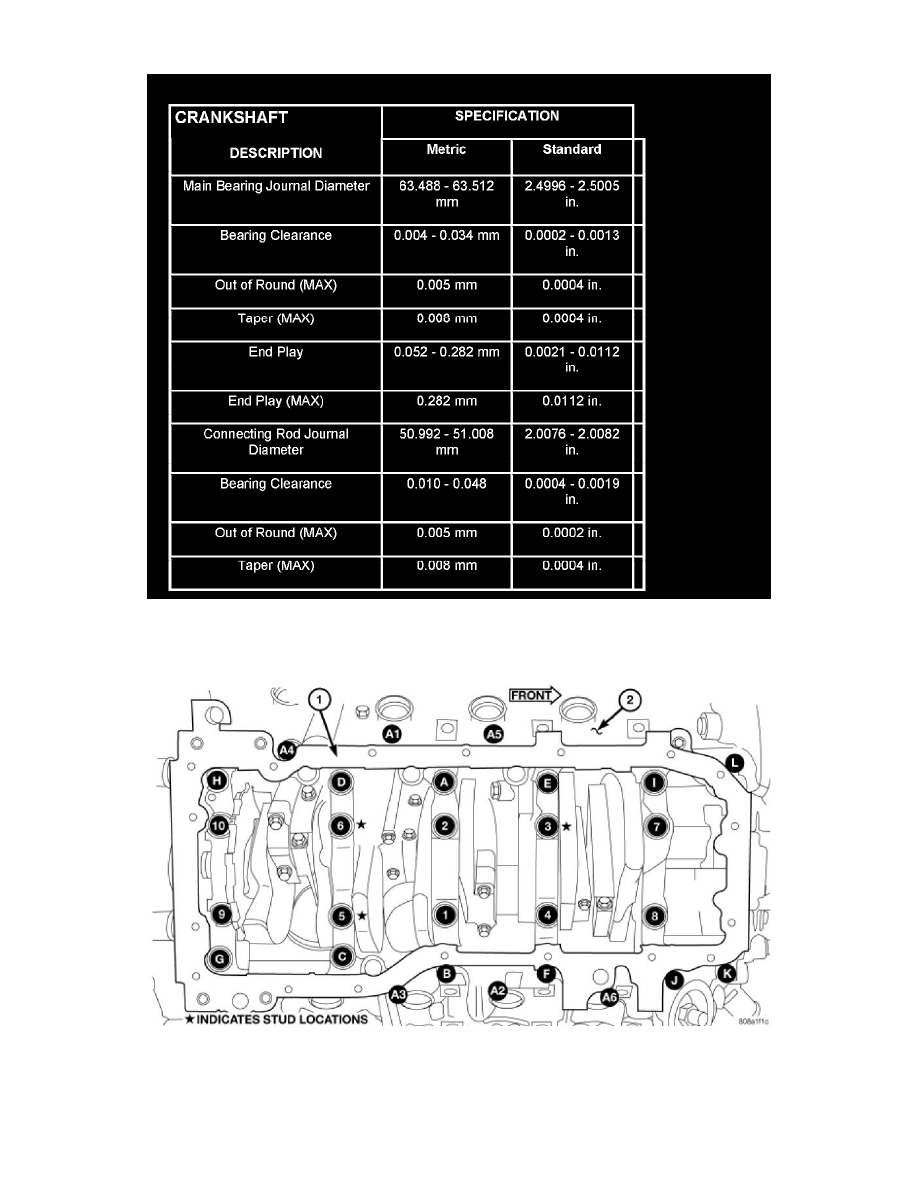

Crankshaft Main Bearing: Specifications
Crankshaft
Crankshaft
Bed Plate-Bolts
Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown.
Tighten bolts A - L .............................................................................................................................................................................. 54 Nm (40 ft. lbs.)
Tighten bolts 1-10 .............................................................................................................................................................................. 2.8 Nm (25 in. lbs.)
Turn bolts 1-10 ....................................................................................................................................................................................... an additional 90°
Tighten bolts A1- A6 ........................................................................................................................................................................... 27 Nm (20 ft. lbs.)
