Windshield: Service and Repair
Removal

REMOVAL

1. Before proceeding with the following repair procedure, review all warnings and cautions.

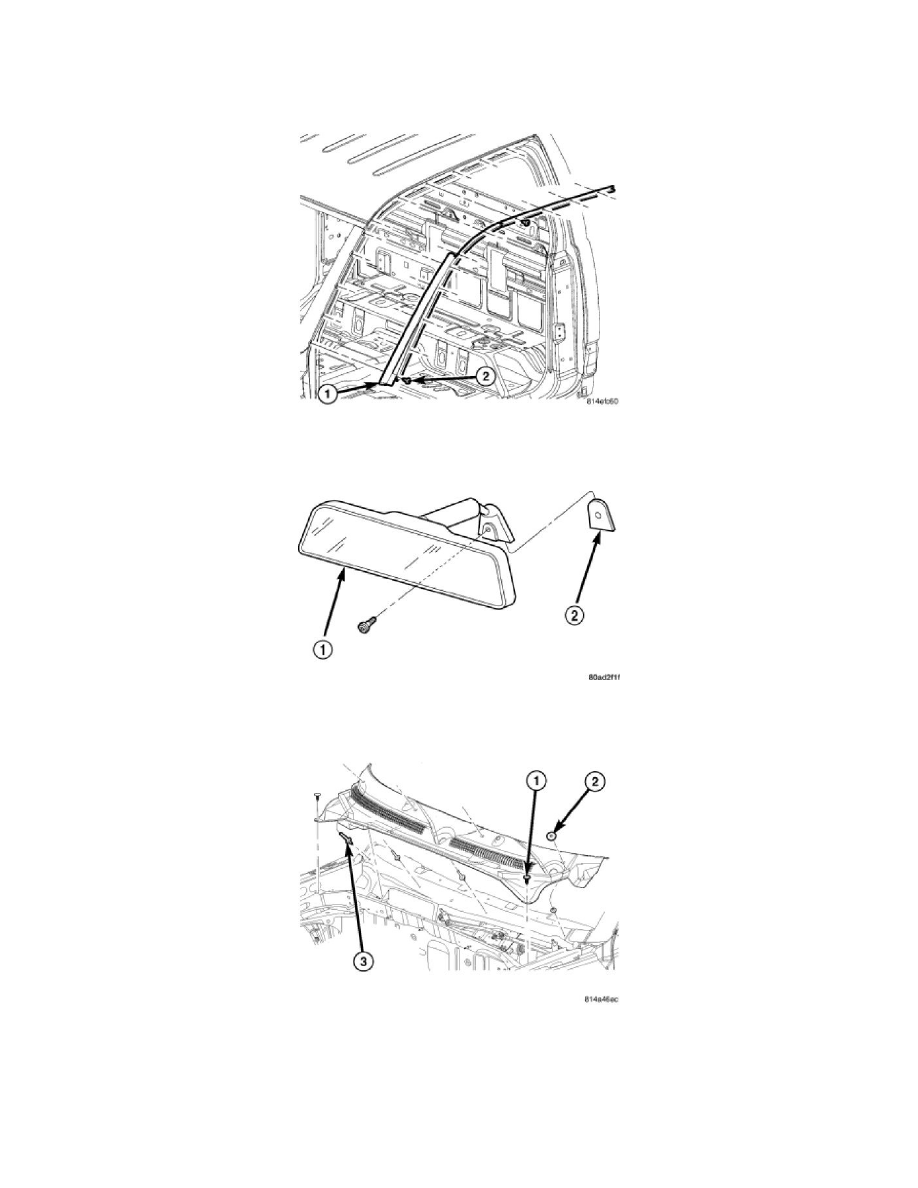

2. Remove the screws (2) attaching the side windshield molding (1) to the a-pillars and remove the molding.

3. Remove rear view mirror (1).

4. Remove the cowl grille.
