Dakota 4WD V8-4.7L Flex Fuel (2008)
Battery Cable: Service and Repair
Battery Cables - Installation
INSTALLATION
NEGATIVE

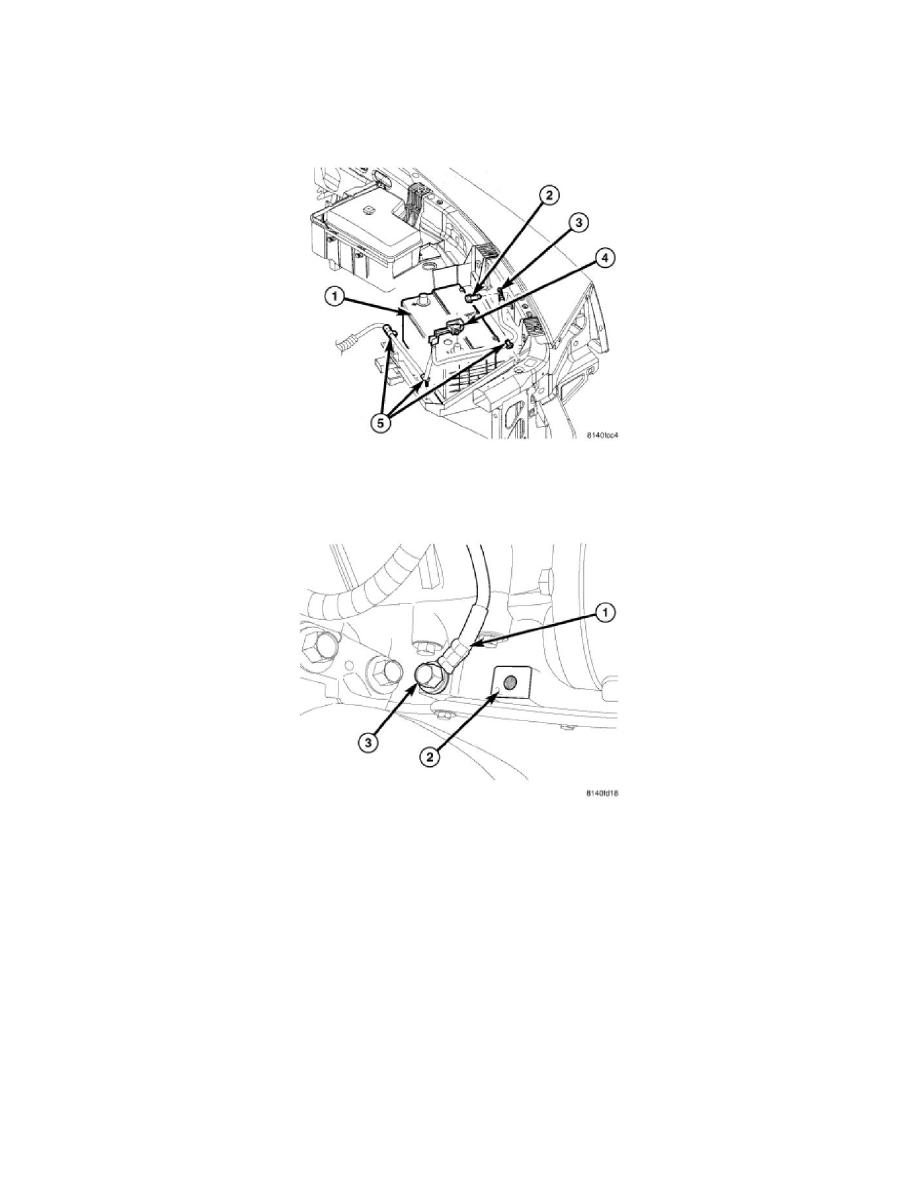

1. Position the battery negative cable (4) in the vehicle and into the engine harness conduit.
2. One at a time, install the battery cable retaining pushpins (5) , fasteners and routing clips until the cable is secure in the vehicle.
3. Install the bolt (2) securing the negative cable eyelet (3) to the left front fender. Tighten the bolt to 20 Nm (15 ft. lbs.).
4. Raise the vehicle on a hoist, See: Maintenance.
5. Install the bolt (3) securing the negative cable (1) to the engine block (2). Tighten the bolt to 16.5 Nm (145 in. lbs.).
