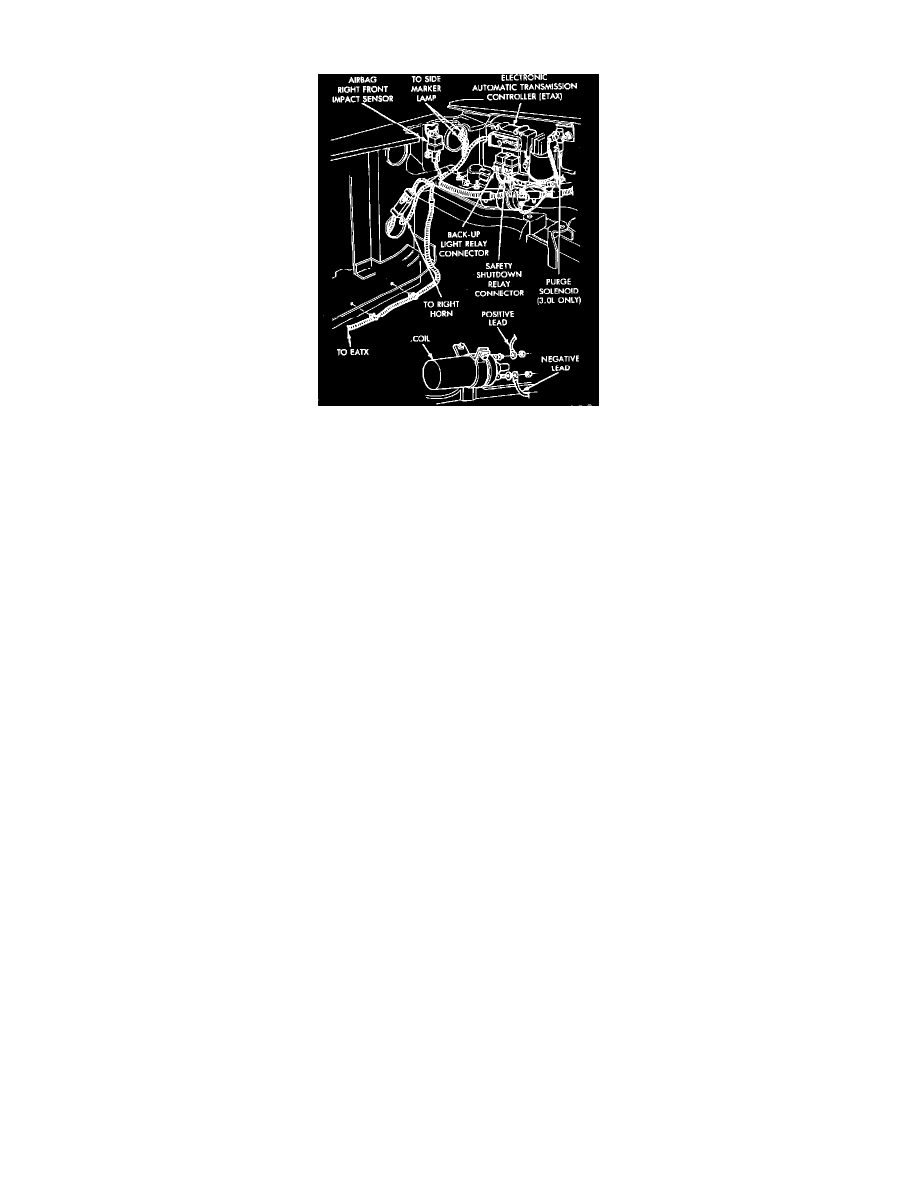

Backup Lamp Relay: Locations

RH Front Of Engine Compartment.

RH Side Of Engine Compartment

Applicable to: 1990 w/Automatic Transmission
