Transmission Cooler: Service and Repair
Removal

REMOVAL

1. Remove the pushpins (1) and the upper condenser/radiator seal (2).
2. Remove the upper transmission cooler mounting bolt.

3. Raise the vehicle.

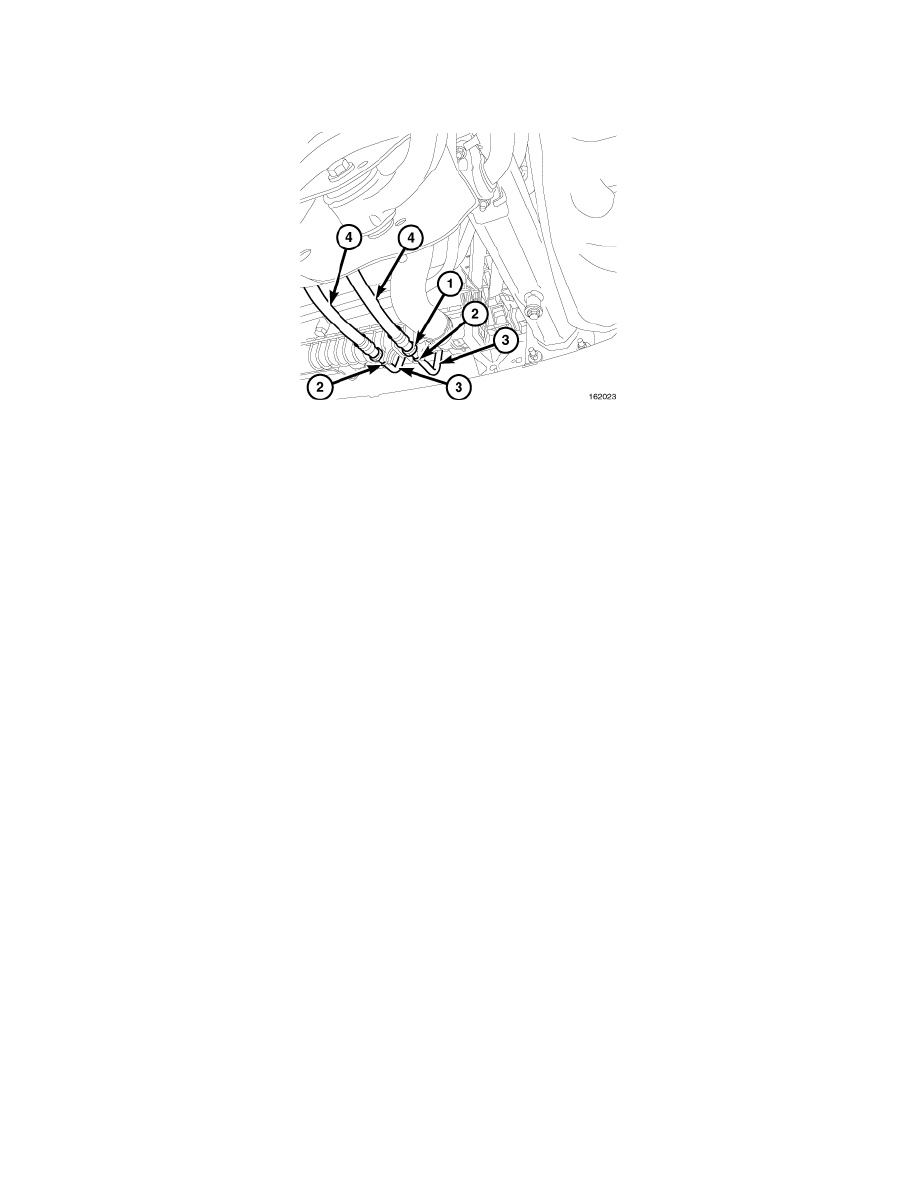

4. Disconnect the transmission cooler lines (1).
5. Remove the lower transmission cooler mounting bolts.
6. Remove the transmission cooler from the vehicle.
