Durango 4WD V8-5.9L VIN Z LDC (1999)
High Pressure Sensor / Switch: Locations

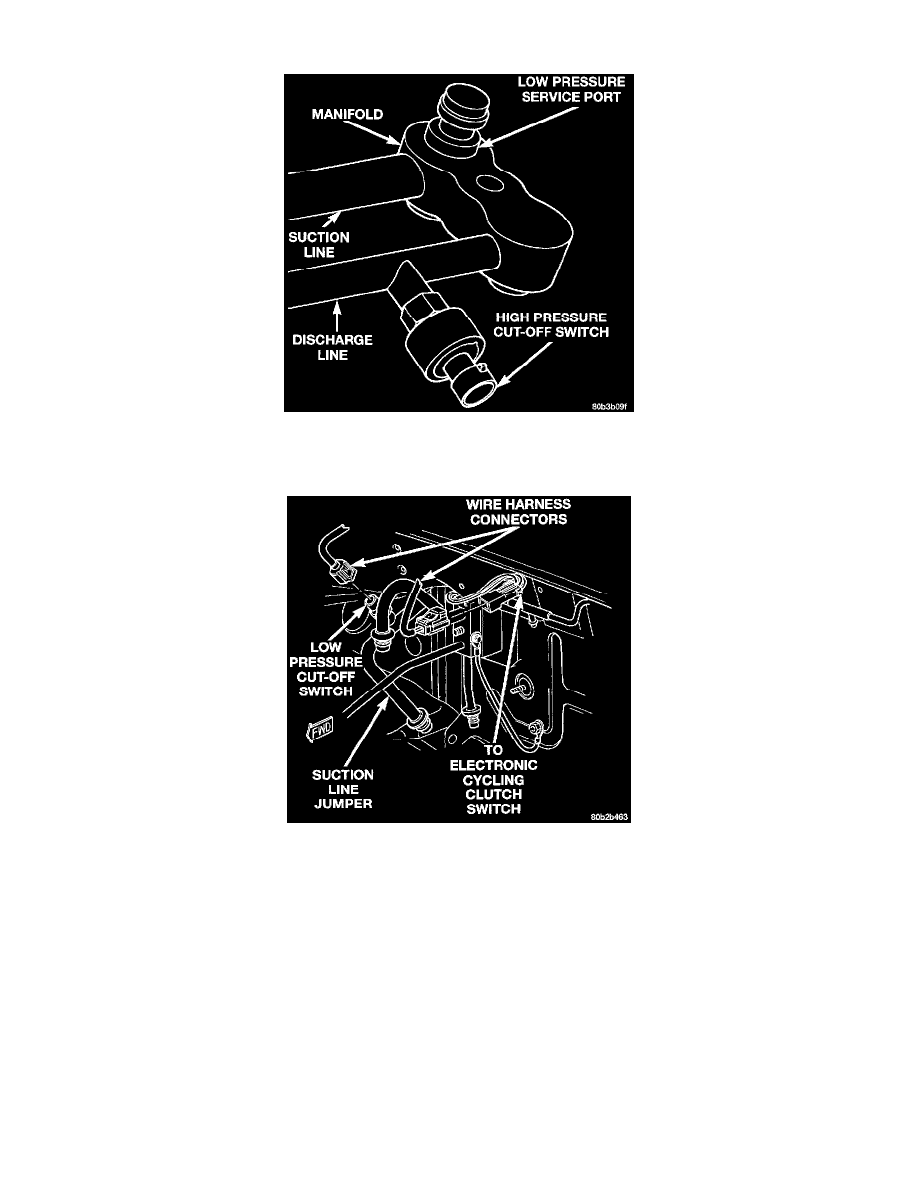

High Pressure Cut-Off Switch Remove/Install
The high pressure cut-off switch is located on the discharge line near the compressor.
Low Pressure Cut-Off Switch Remove/Install
The low pressure cycling clutch switch is located on the side near the top of the accumulator.
