Grand Caravan V6-3.3L VIN R (2005)

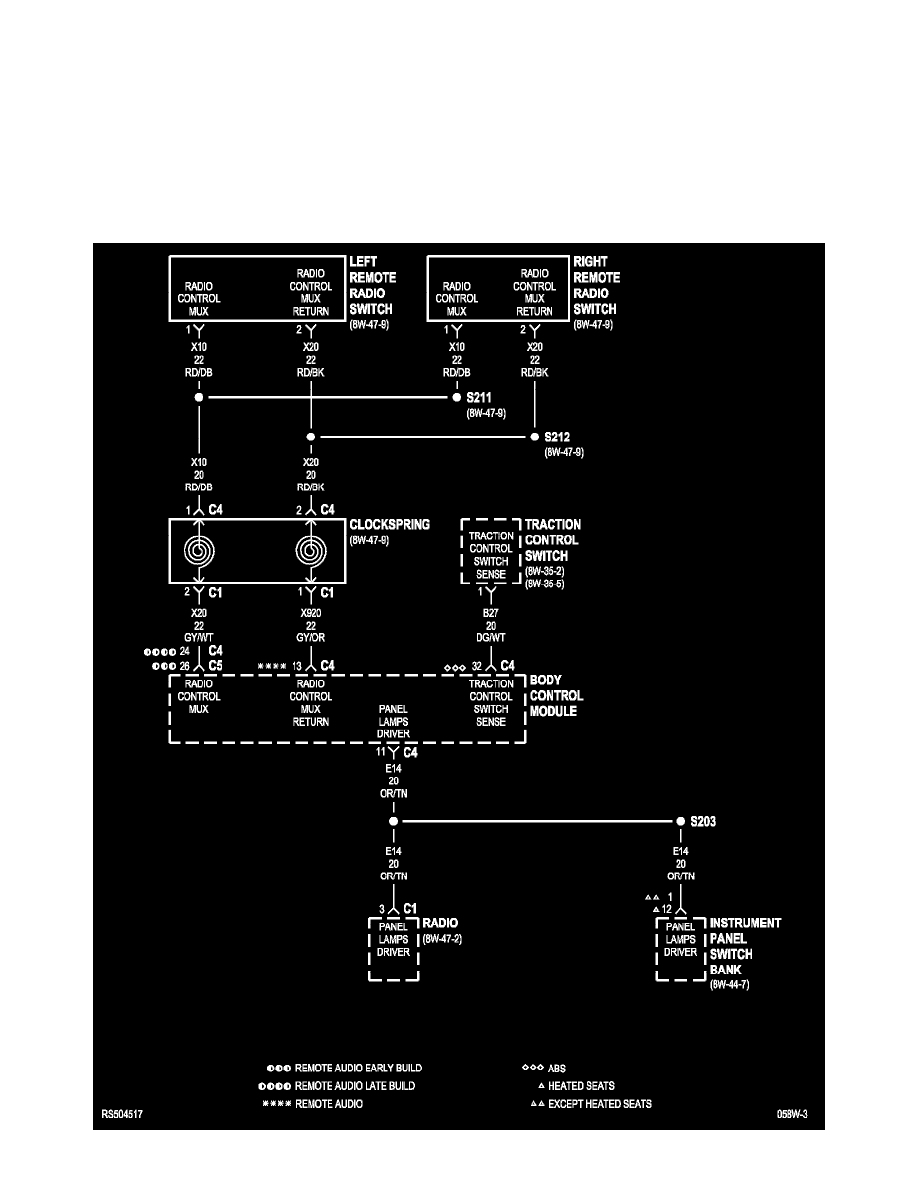

8w-45-16
Next Diagram See: 8W-45-17
Previous Diagram See: 8W-45-15
Other Diagram: Other diagrams referred to by number (i.e. 8W-70-2, etc.) within these diagrams can be found at the vehicle level under Diagrams by
Number. See: Diagrams/Electrical Diagrams/Diagrams By Number
8W-45-17
PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do
not apply to the vehicle model selected.
