25.

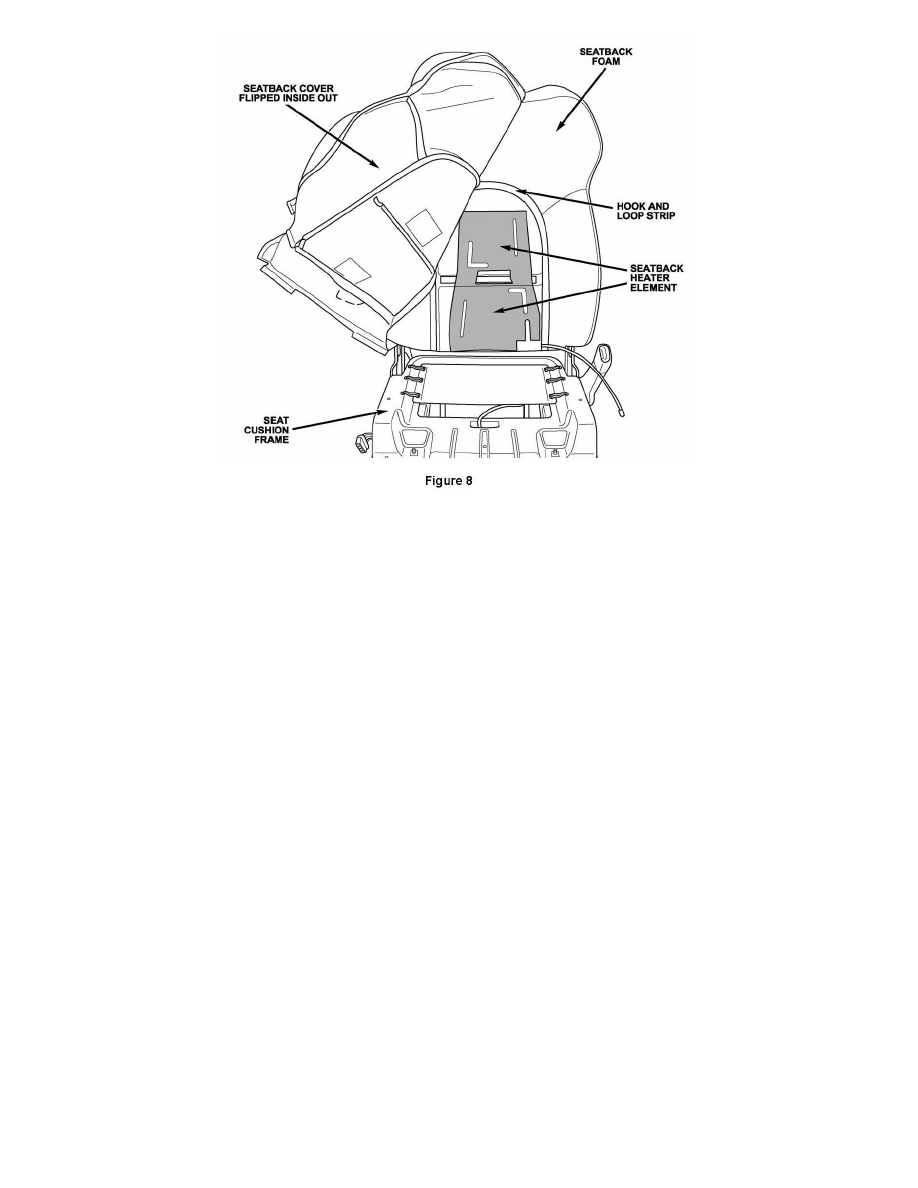

Bond the new seatback heater element to the seatback foam as shown in Figure 8.
NOTE:
Due to different seat cover styles, some models will have the horizontal hook and loop fastener strip towards the bottom of the seatback while others
will have it located high on the seatback. For seatbacks with the hook and loop fastener at the bottom of the seatback, use the hook and loop strips
provided on the heating element to position the element on the seatback. For seatbacks with a high hook and loop fastener location, place the top
edge of the heating element 1/4 inch below the hook and loop fastener strip.
CAUTION:
During the installation of the new heating elements, be careful not to fold or crease the element assemblies.
26.
Carefully pull the seatback cover over the seatback foam and new seatback heating elements. Secure the cover by engaging the J-strip retainers.
27.
Route the seatback heating element wires towards the rear of the seat.
28.
Install the arm rest onto the seatback. Tighten the screw securely and install the screw cover.
29.
If removed, install the headrest tubes and headrest.
30.
If equipped, install the lumbar support lever from the seatback.
31.
Install the seat cushion assembly onto the seat pan and connect the front, right and left side cushion J-clip retainers.
32.
Connect the electrical connections for the seat heater elements as follows:
a.
Connect the two way connector at the seat back and cushion to the heated seat module.
