Grand Caravan AWD V6-3.8L VIN L (2001)
![background image](/dodge/grand_caravan_awd/v6-3.8l_vin_l/Page-1711001.png)
Hydraulic Control Assembly - Antilock Brakes: Service and Repair
Disassembly and Assembly

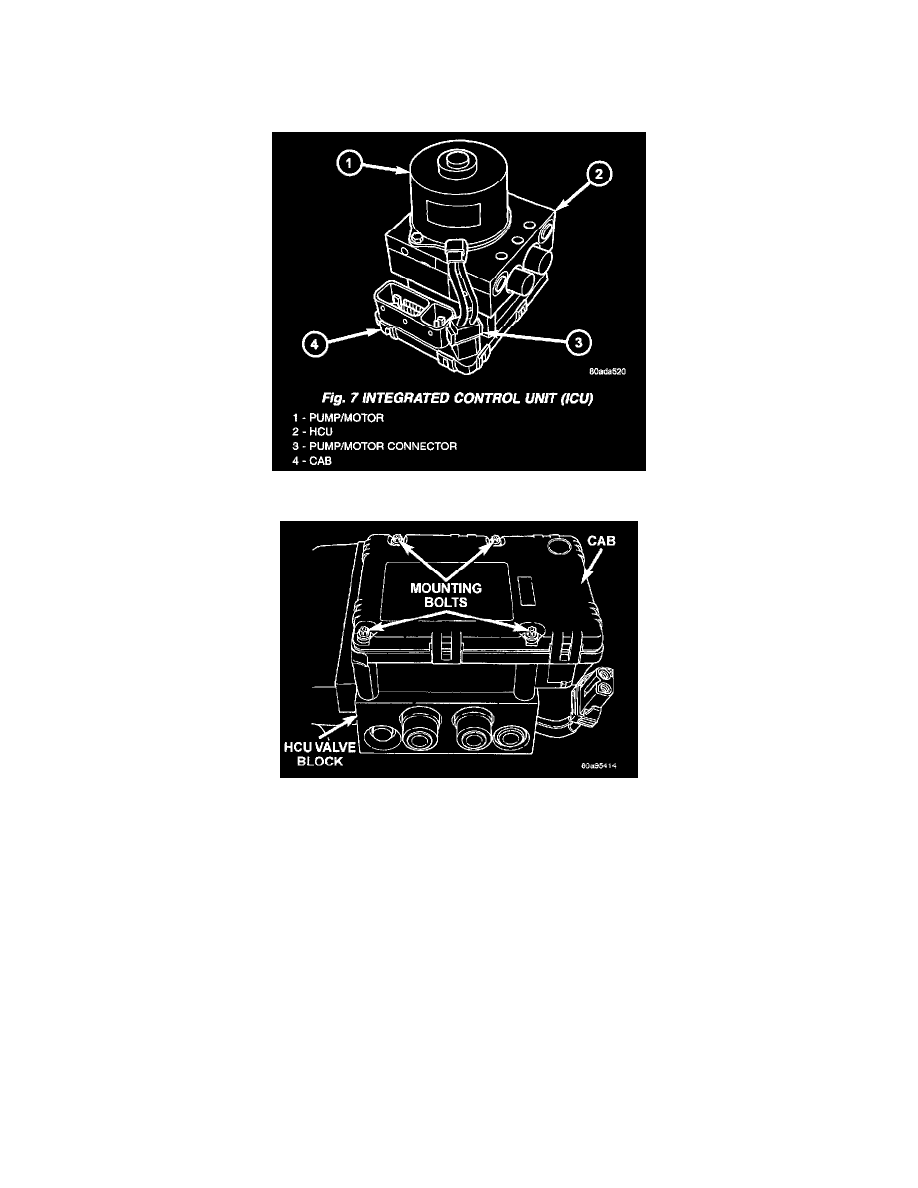

DISASSEMBLY - ICU
1. Remove the Integrated Control Unit (ICU) from the vehicle.
2. Disconnect the pump/motor wiring harness from the Controller Antilock Brake (CAB).
CAB Attaching Bolts
3. Remove the 4 bolts attaching the CAB to the Hydraulic Control Unit (HCU).
