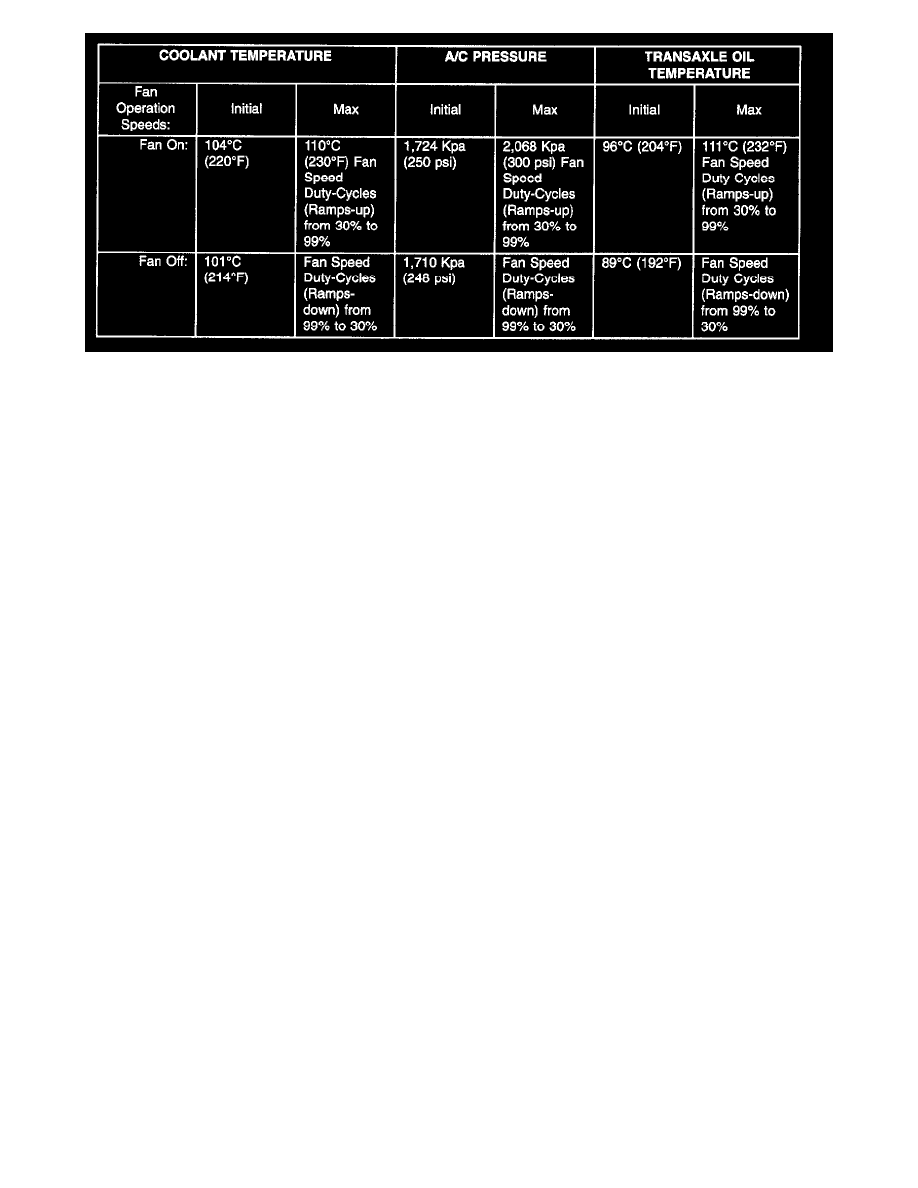

RADIATOR FAN OPERATION CHART

Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan
Radiator Cooling Fan Motor Relay / Component Information
Diagrams
Page 2039
