Grand Caravan AWD V6-3.8L VIN L (2001)
Engine, Cooling and Exhaust
Cooling System
Relays and Modules - Cooling System / Radiator Cooling Fan Motor Relay / Component Information
Diagrams
Page 2138
Page 2

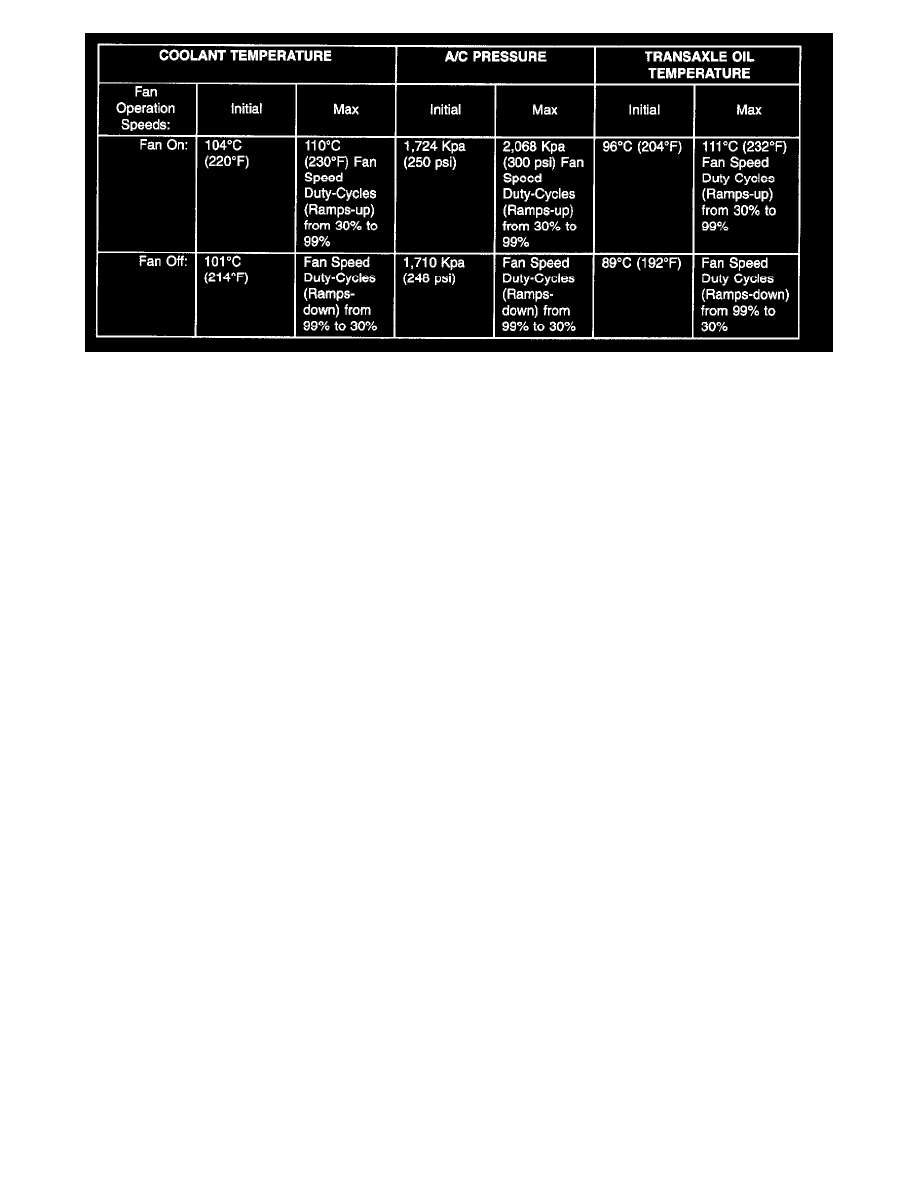

RADIATOR FAN OPERATION CHART
Engine, Cooling and Exhaust
Cooling System
Relays and Modules - Cooling System / Radiator Cooling Fan Motor Relay / Component Information
Diagrams
Page 2138
