Grand Caravan AWD V6-3.8L VIN L (2001)
Starter Motor: Service and Repair
REMOVAL
1. Release hood latch and open hood.
2. Disconnect and isolate the battery negative cable.
3. Hoist and support vehicle on safety stands.

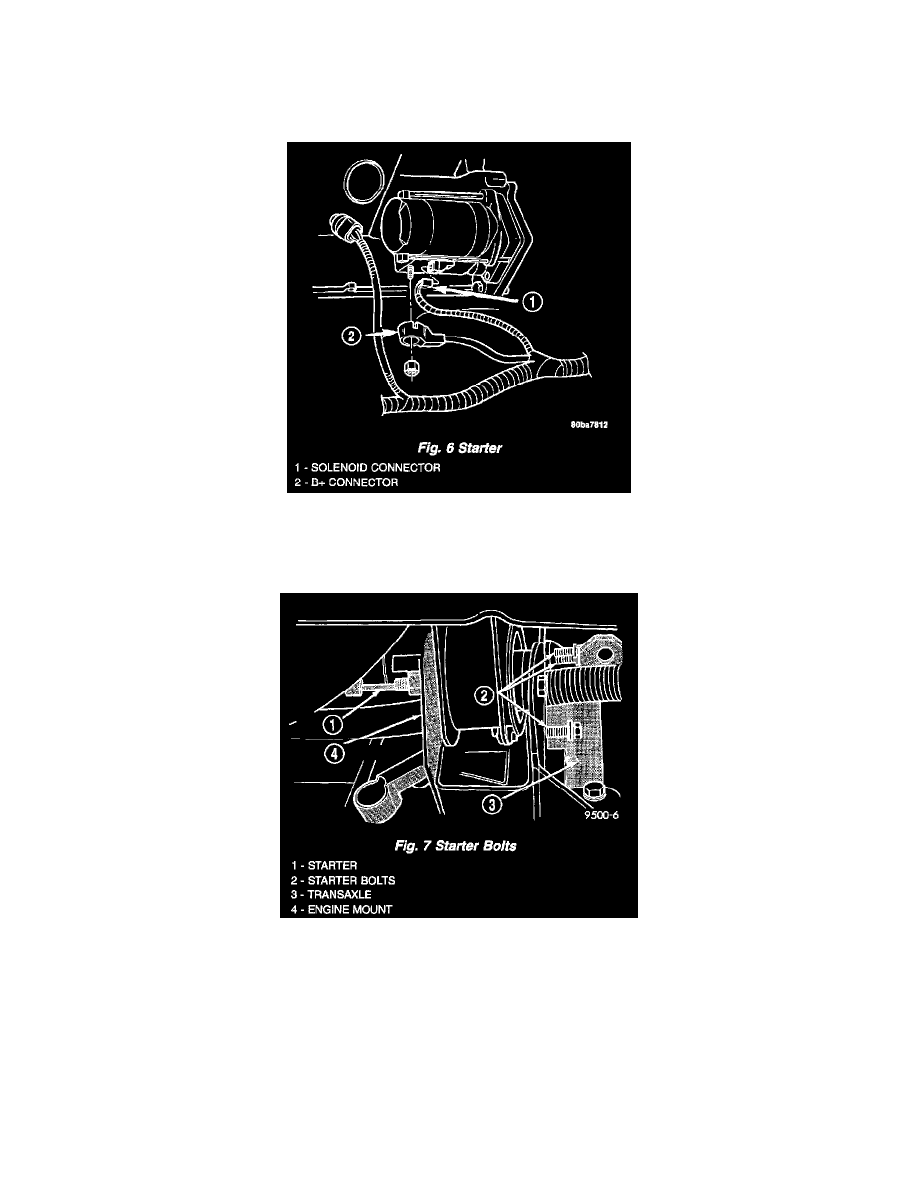

Fig.6 Starter
4. Remove nut holding B+ terminal to starter solenoid (Fig. 6).
5. Disconnect solenoid connector from starter.
Fig.7 Starter Bolts
6. Remove bolts holding starter to transaxle bellhousing (Fig. 7).
