Grand Caravan AWD V6-3.8L VIN L (2001)
Accumulator: Description and Operation
40/41TE
DESCRIPTION

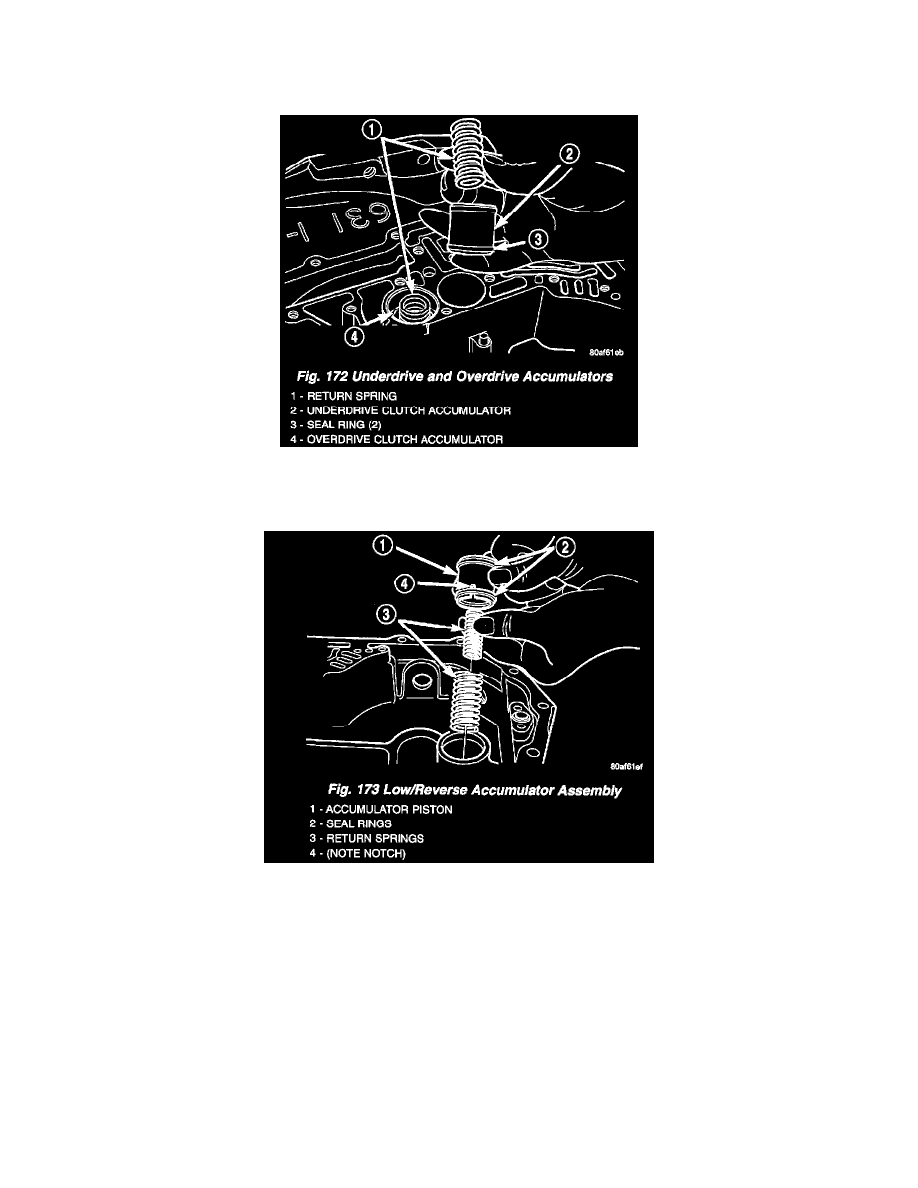

The 41TE underdrive, overdrive, low/reverse, and 2/4 clutch hydraulic circuits each contain an accumulator. An accumulator typically consists of a
piston, seals, return spring(s), and a cover or plug. The overdrive and underdrive accumulators are located within the transaxle case, and are retained
by the valve body (Fig. 172).
The low reverse accumulator (Fig. 173) is also located within the transaxle case, but the assembly is retained by a cover and a snap-ring.
