Grand Caravan AWD V6-3.8L VIN L (2001)

Page 8
background image

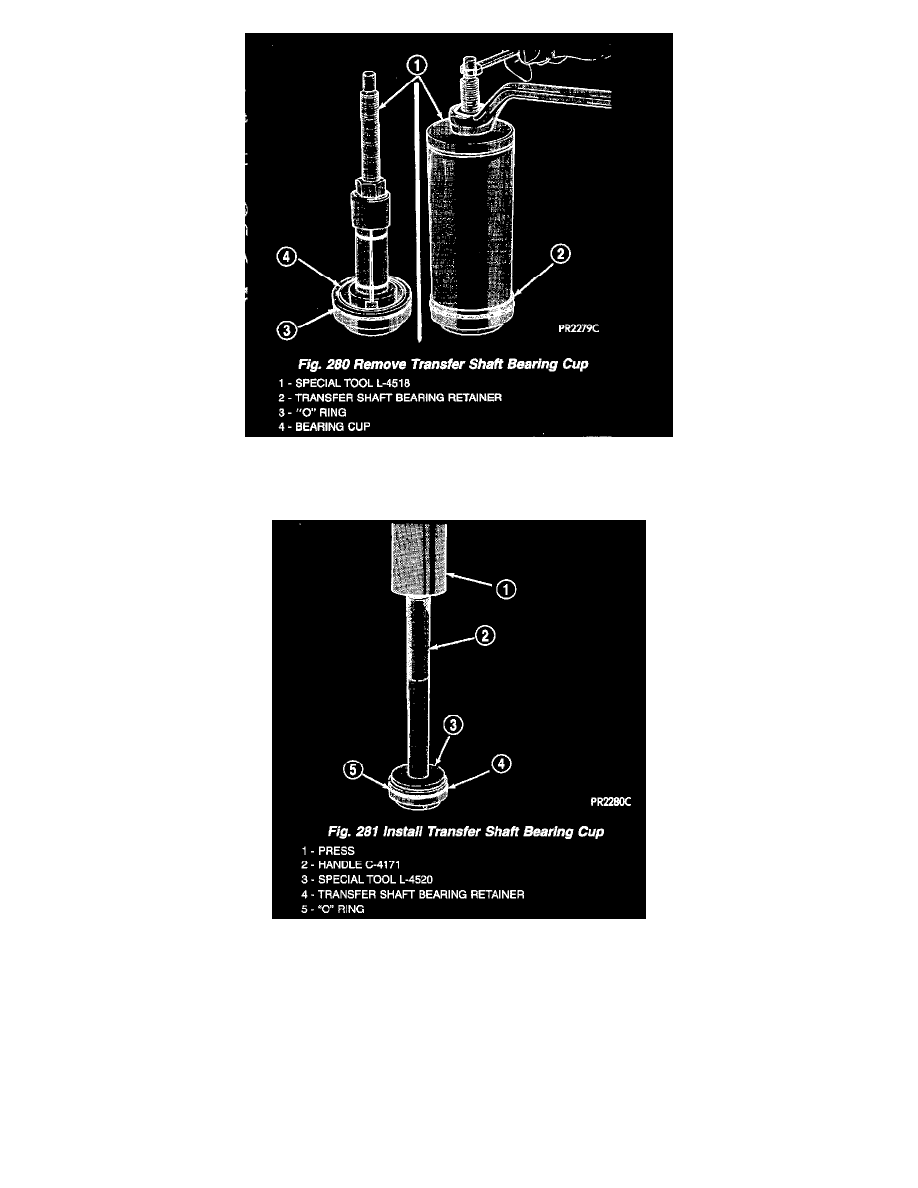

18. Remove transfer shaft bearing cup from bearing retainer (Fig. 280).

INSTALLATION

1. Install transfer shaft bearing cup to bearing retainer using Tool L-4520 (Fig. 281).
