Grand Caravan FWD V6-181 3.0L SOHC (1993)

Page 2
background image

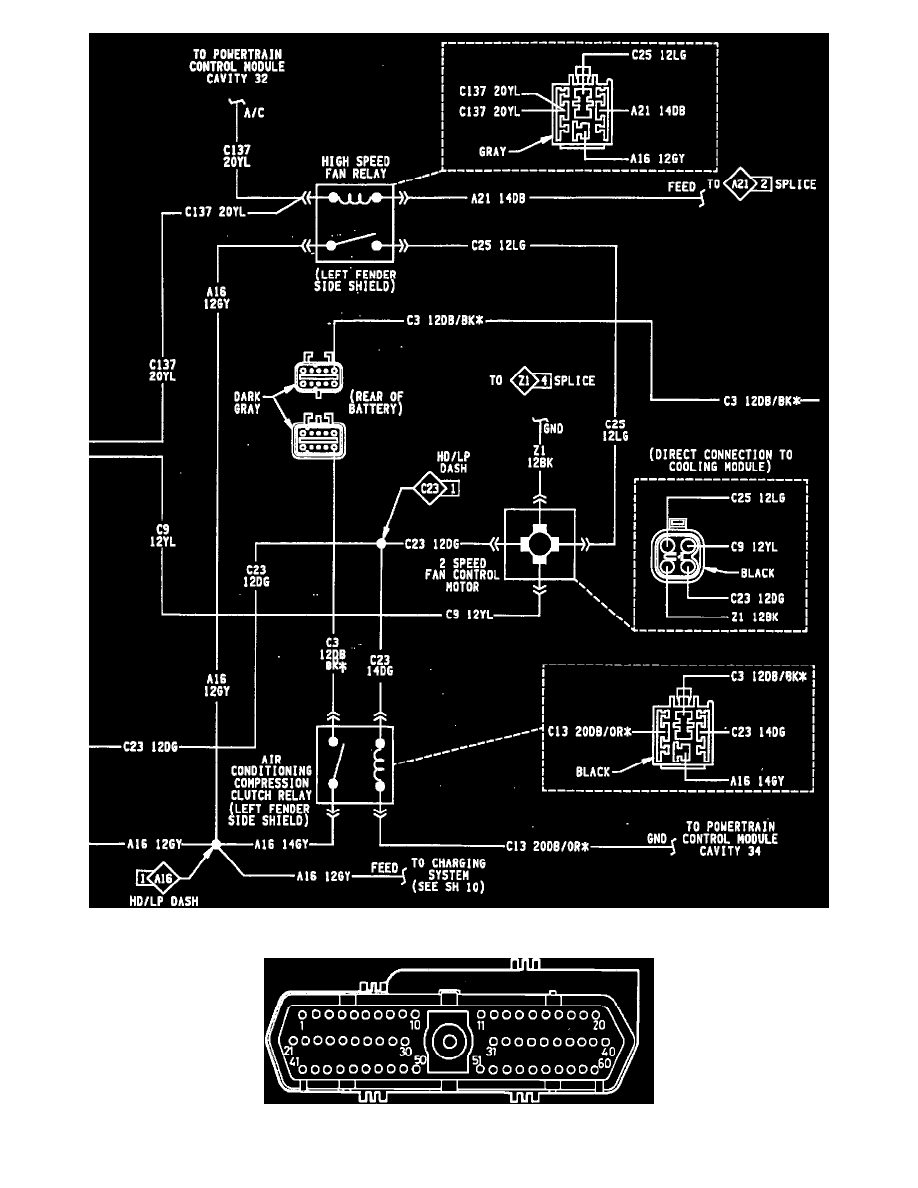

Electric cooling fan & air conditioning circuit With Transmission Control (Part 2 of 4)

Fig. 20 - Engine Controller 60-way Connector
