Grand Caravan FWD V6-181 3.0L SOHC (1993)
Drive Belt: Diagrams
Without A/C

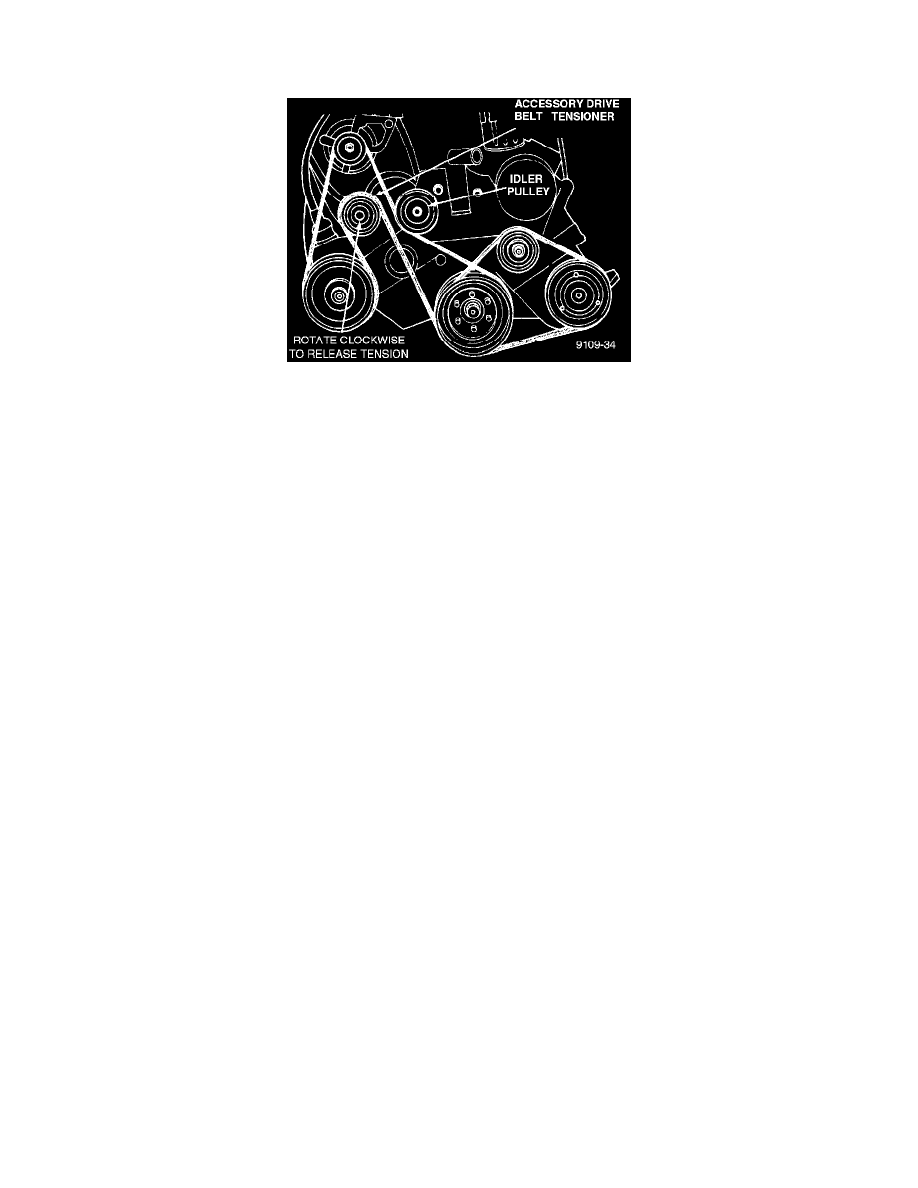

Alternator/Power Steering Belt
This image shows an air conditioning compressor.
The OE does not provide an image for accessory belt routing without A/C.
This image clearly shows 2 seperate belts, one for the tensioner and A/C Compressor and the other for all other accessory drive components.
This article is included here to provide the accessory drive belt routing for a non-air conditioned vehicle.
