Intrepid V6-2.7L VIN R (2003)
Coolant: Service and Repair

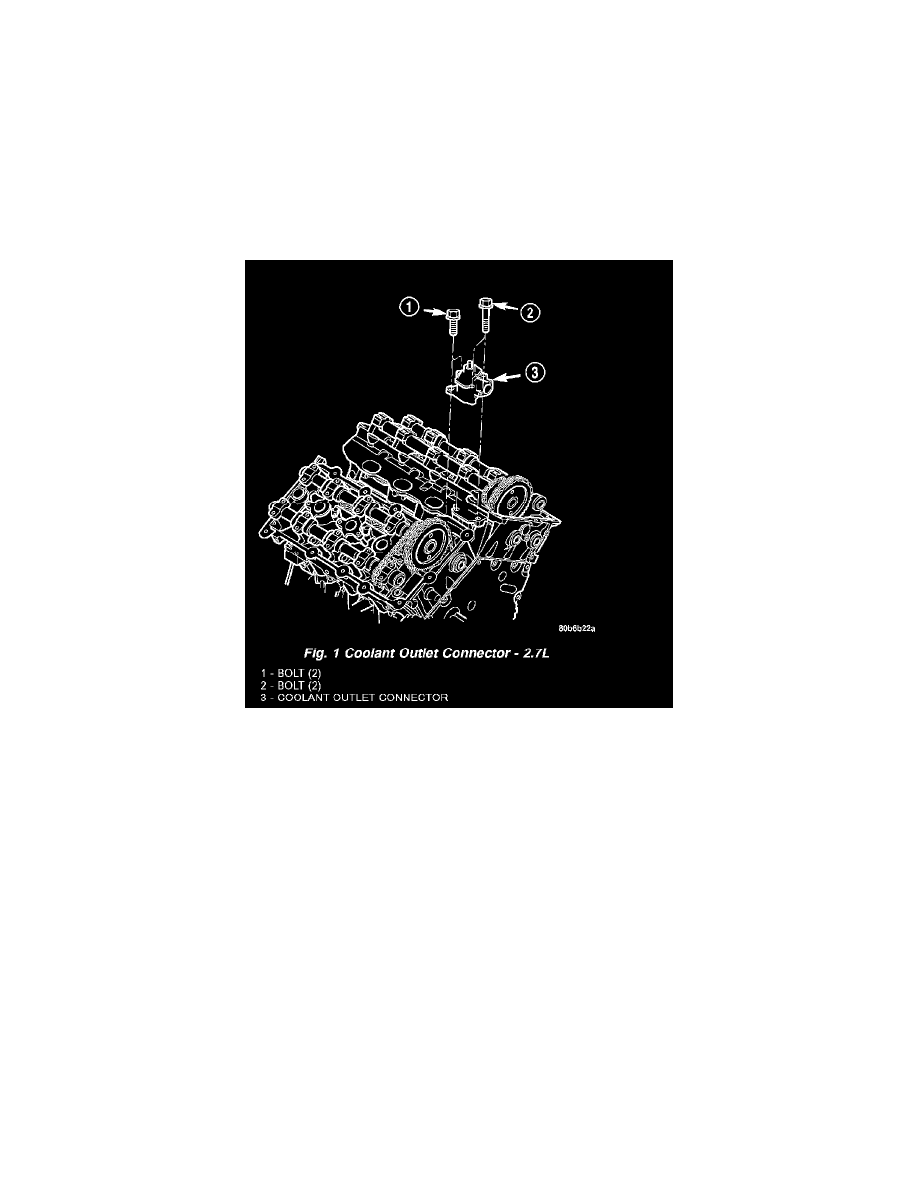

COOLANT OUTLET CONNECTOR 2.7L
REMOVAL
WARNING: DO NOT REMOVE PRESSURE CAP WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS
FROM COOLANT CAN OCCUR.
1. Drain cooling system.
2. Remove upper intake manifold.
3. Remove screws attaching heater tube to outlet connector.
4. Disengage tube from outlet connector only enough for connector removal.
5. Remove bolts attaching water outlet connector.
6. Remove outlet connector.
INSTALLATION
1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.
2. Install outlet connector and tighten bolts to 12 Nm (105 in. lbs.) .
3. Inspect and replace heater supply tube O-ring as necessary.
4. Lubricate O-ring and insert heater tube assembly into outlet connector. Tighten screws to 3 Nm (30 in. lbs.).
5. Install upper intake manifold.
6. Fill cooling system.
