Intrepid V6-3.5L VIN G (2002)
Seat Belt Buckle: Service and Repair
Seat Belt Buckle - Front Seat Center Occupied
SEAT BELT BUCKLE - FRONT SEAT CENTER OCCUPIED - CONCORDE/INTREPID REPLACEMENT
REMOVAL
1. Move or remove the front seat as necessary to gain access to seat belt buckle anchor bolt

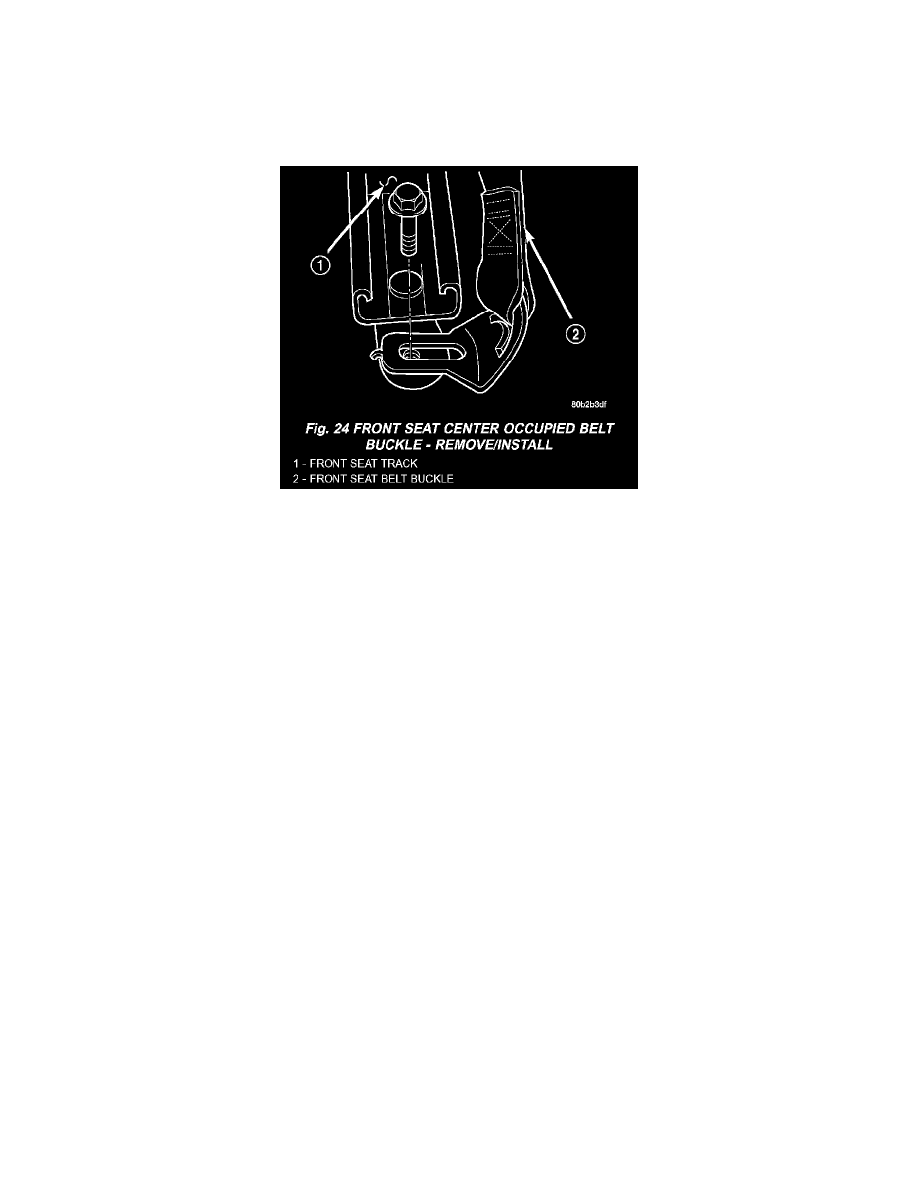

Fig. 24 Front Seat Center Occupied Belt Buckle - Remove/Install
2. Remove the bolt attaching buckle and reinforcement to front seat track.
3. Remove the seat belt buckle from vehicle.
INSTALLATION
1. Place the seat belt buckle in position in the vehicle.
2. Install the buckle attaching bolt and reinforcement to the front seat track or floor. Tighten bolt to 40 Nm (30 ft. lbs.) torque.
3. Install the front seat, if it was removed.
