Journey AWD V6-35L (2009) Cooling System: Coolant Reservoir Description - Pressure System
Coolant Reservoir: Description and Operation
Description - Pressure System

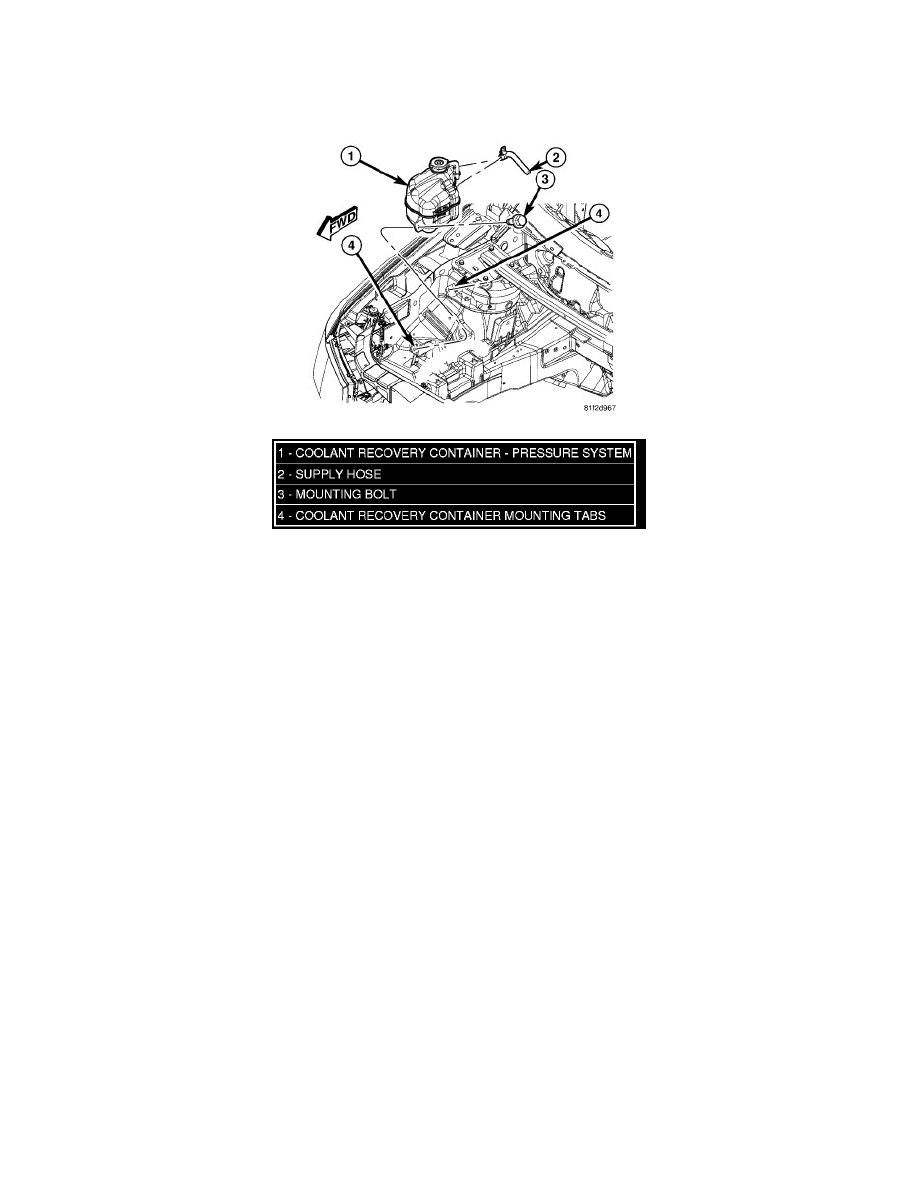

PRESSURE SYSTEM
The coolant pressure container consists of a pressure chamber and a overflow chamber. The coolant pressure container is mounted in the right side
engine compartment.
NOTE: Coolant will normally be in the pressure chamber side of the coolant bottle. The overflow chamber should normally be empty
