Air Injection Check Valve: Description and Operation
Description

DESCRIPTION

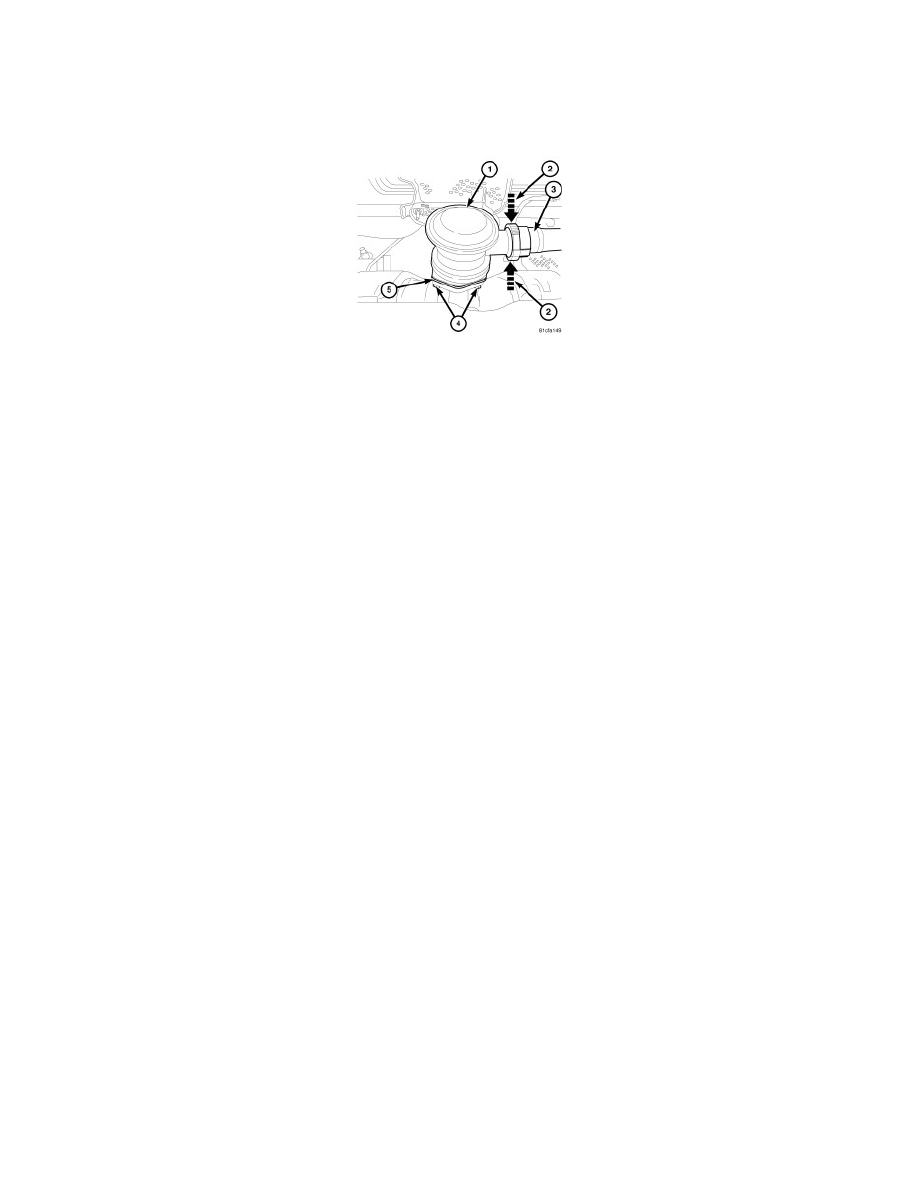

The air injection check valve (1) is a one-valve check valve that allows air to flow in one direction only. The valve is located at exhaust side of the
engine at the top of the exhaust manifold.
