Magnum V6-3.5L VIN V (2006)
Valve Body: Description and Operation
42RLE Automatic Transmission
BODY-VALVE
DESCRIPTION

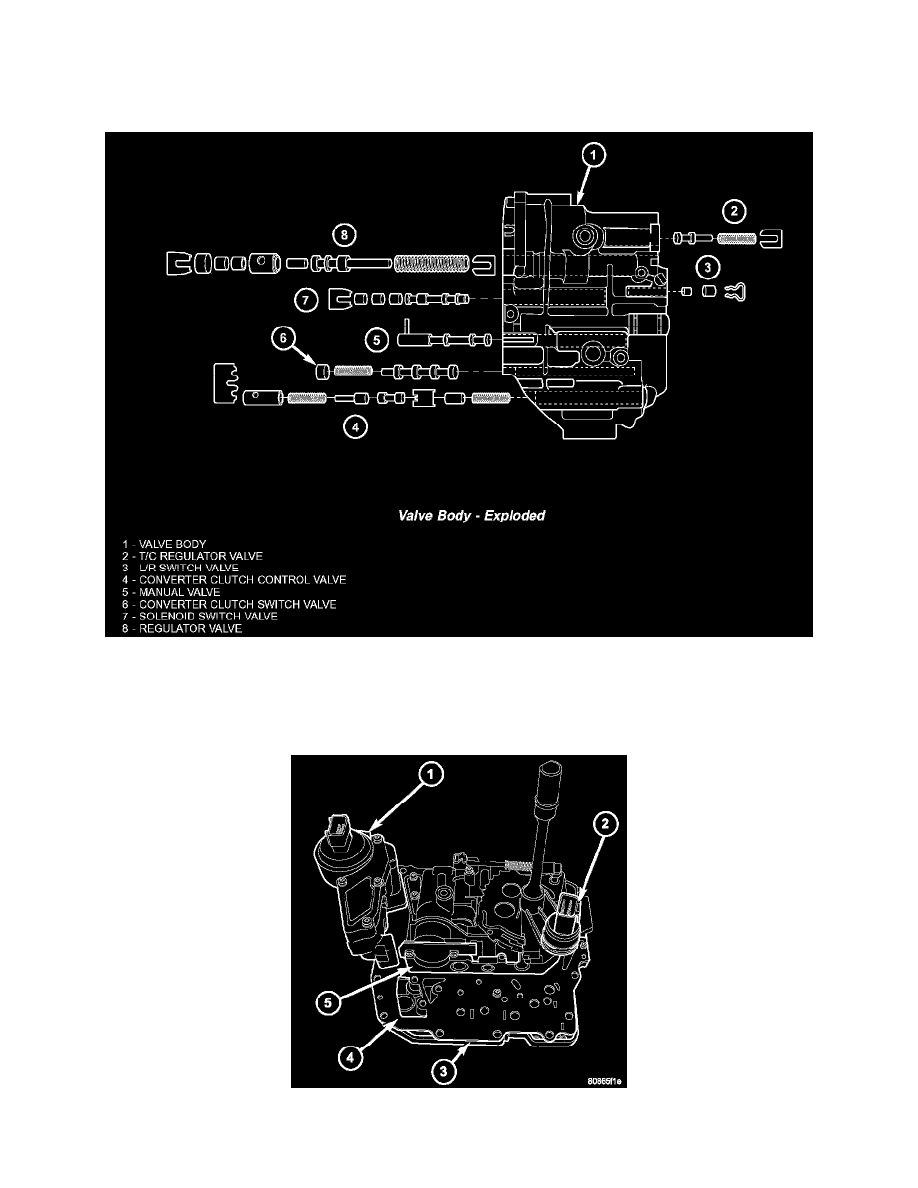

Valve Body - Exploded
The valve body assembly consists of a cast aluminum valve body (5),separator plate (4), and transfer plate (3). The valve body contains valves and
check balls that control fluid delivery to the torque converter clutch, solenoid/pressure switch assembly, and frictional clutches.
Also mounted to the valve body assembly are the solenoid/pressure switch assembly and the transmission range sensor (2).
The valves contained within the valve body (1) include the following
^
Regulator valve(2)
