Magnum V8-5.7L (2008)

Page 1
background image

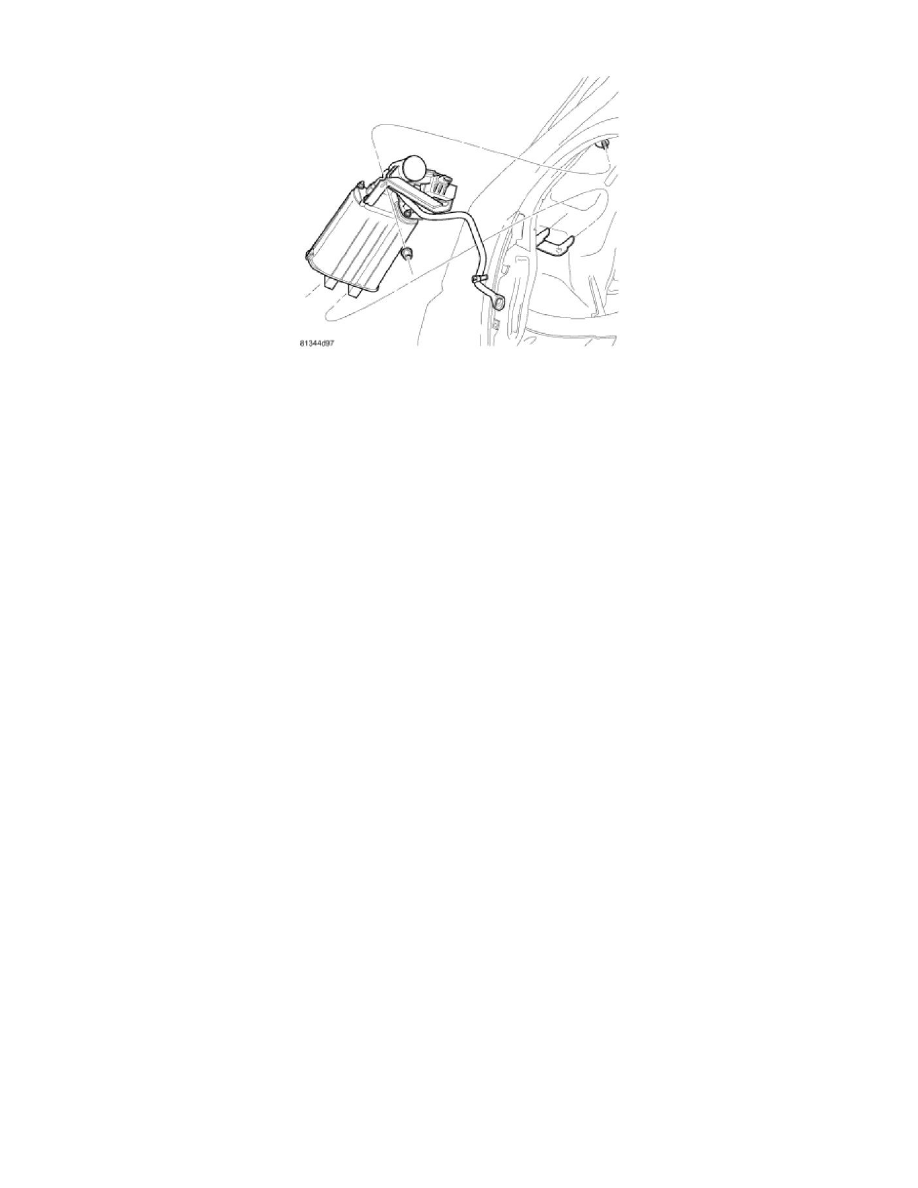

Leak Detection Pump: Locations

The ESIM mounts directly to the canister, eliminating the need for a mounting bracket.
