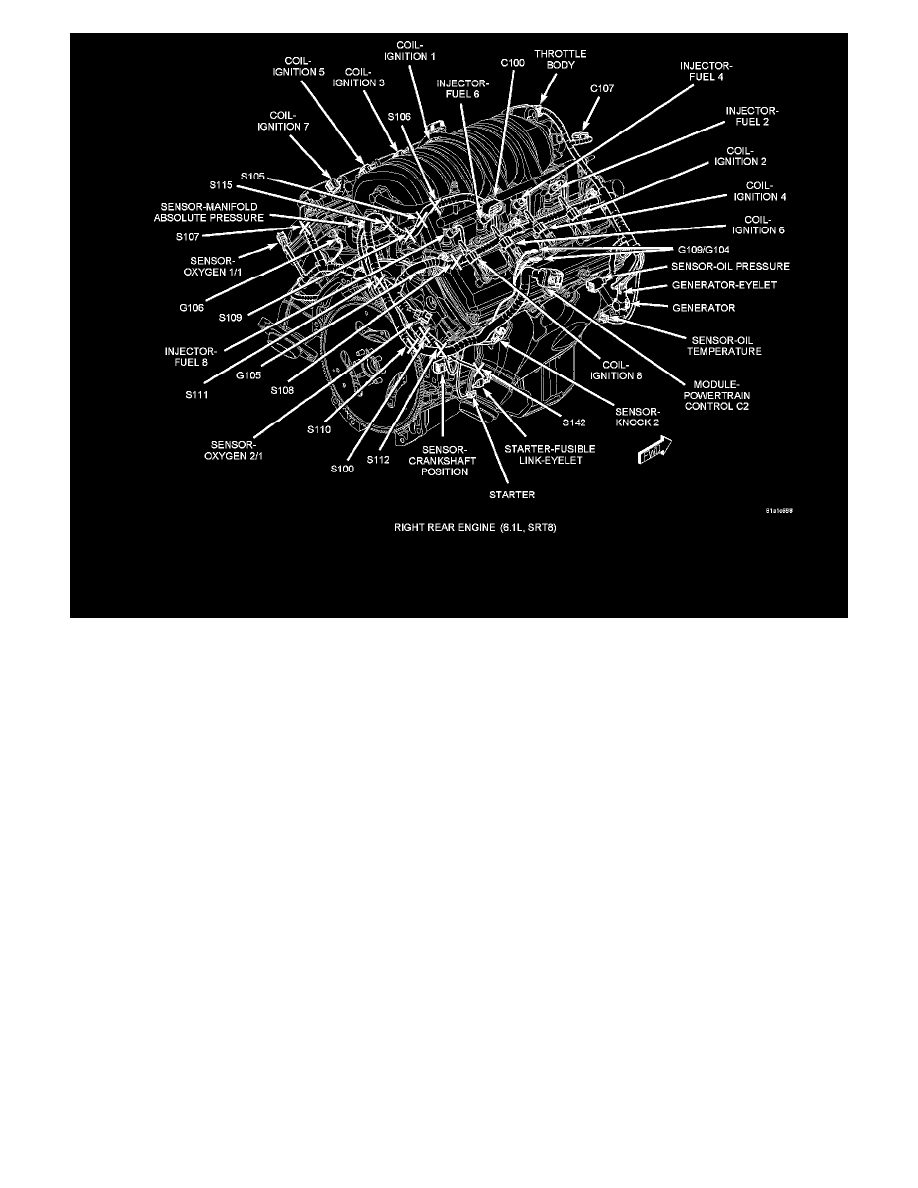

Component Location - 28

Powertrain Management
Ignition System
Ignition Coil / Component Information
Diagrams / Capacitor-Ignition 1
