Magnum V8-5.7L VIN 2 (2007)

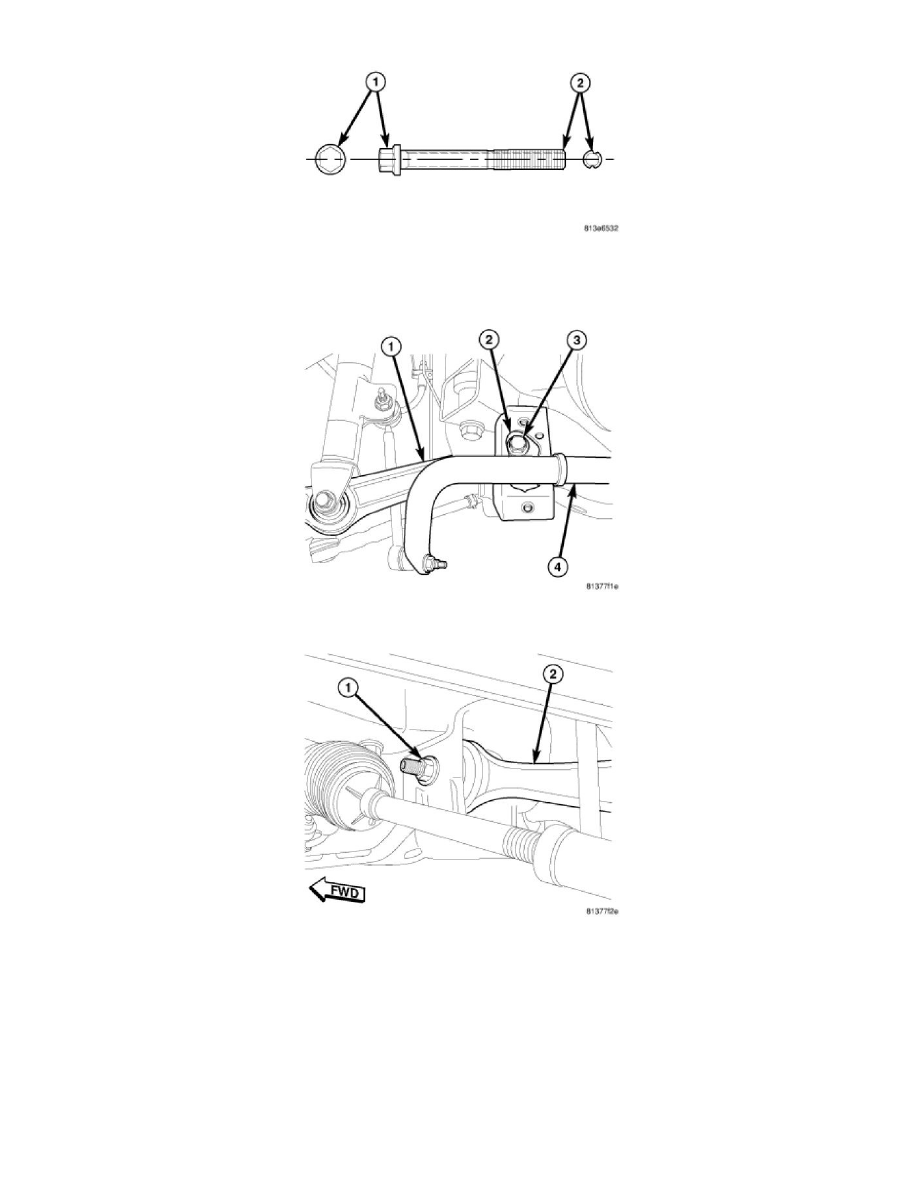

NOTE: If installing a lower control arm engine cradle bolt that is a wheel alignment adjustment bolt (1) (lengthwise grooved shaft (2)), make
sure to install it in the same position which it was in upon removal. For more details on installation of this special bolt, refer to Suspension
Wheel Alignment Standard Procedure.
1. Slide lower control arm (4) into position in engine cradle and install mounting bolt from rear.
2. Install nut (1) on lower control arm cradle bolt, but do not tighten at this time.
