Magnum V8-5.7L VIN 2 (2007)
9. Perform wheel alignment.

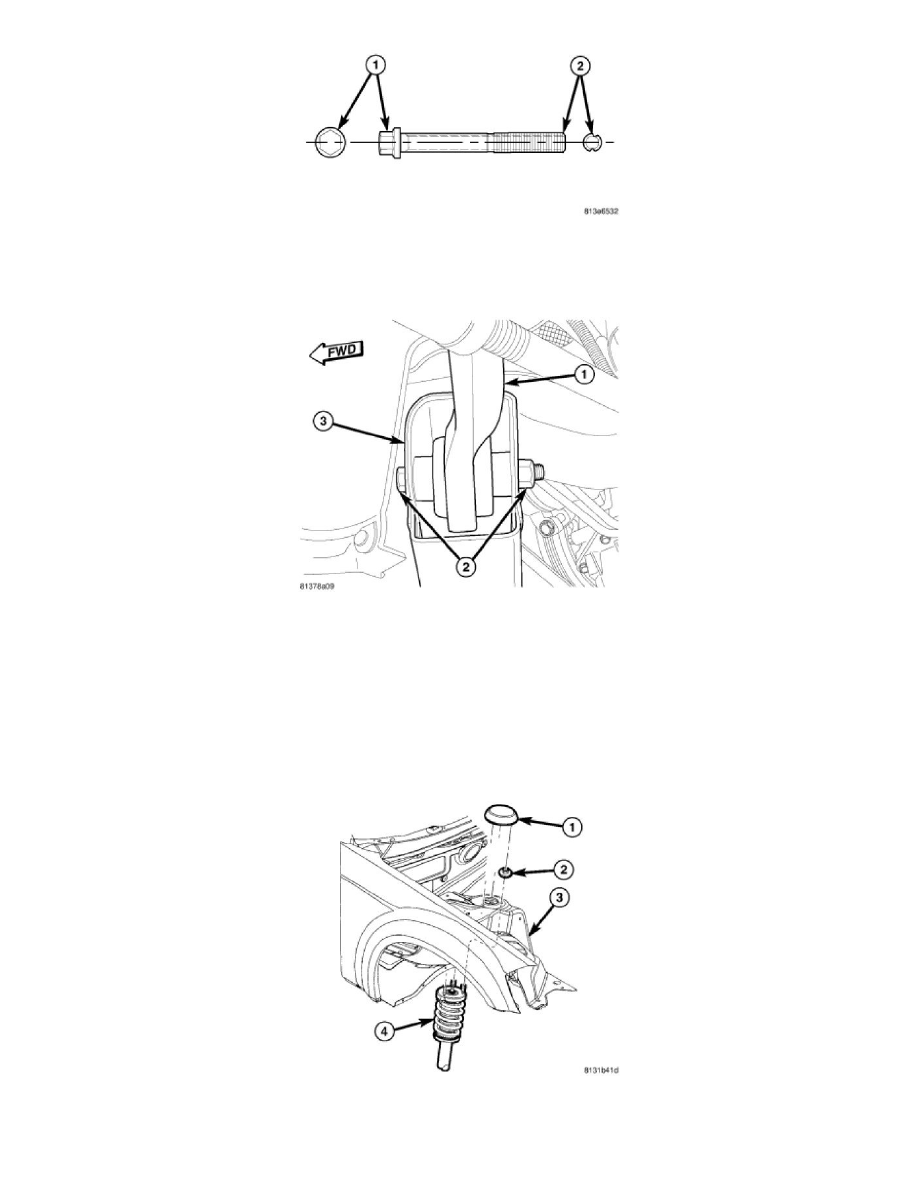

CAUTION: If the tension strut engine cradle bolt is a wheel alignment adjustment bolt (lengthwise grooved shaft (2)), be sure to only
tighten the nut. Do not rotate the bolt head (1) or damage to the bushing will occur.
10. Once alignment is found to be within specifications, using a crowfoot wrench, tighten tension strut cradle bolt nut (2) to 176 Nm (130 ft. lbs.)
while holding the bolt stationary.
11. Install belly pan.
Removal
REMOVAL
1. If removing left upper control arm, remove and reposition coolant recovery container.
2. If removing right upper control arm, remove IPM from mount and reposition.
3. If equipped, remove front shock tower cap (1) from top of shock assembly (4).
4. Remove three nuts (2) fastening shock assembly (4) to shock tower (3).
