Magnum V8-5.7L VIN 2 (2007)

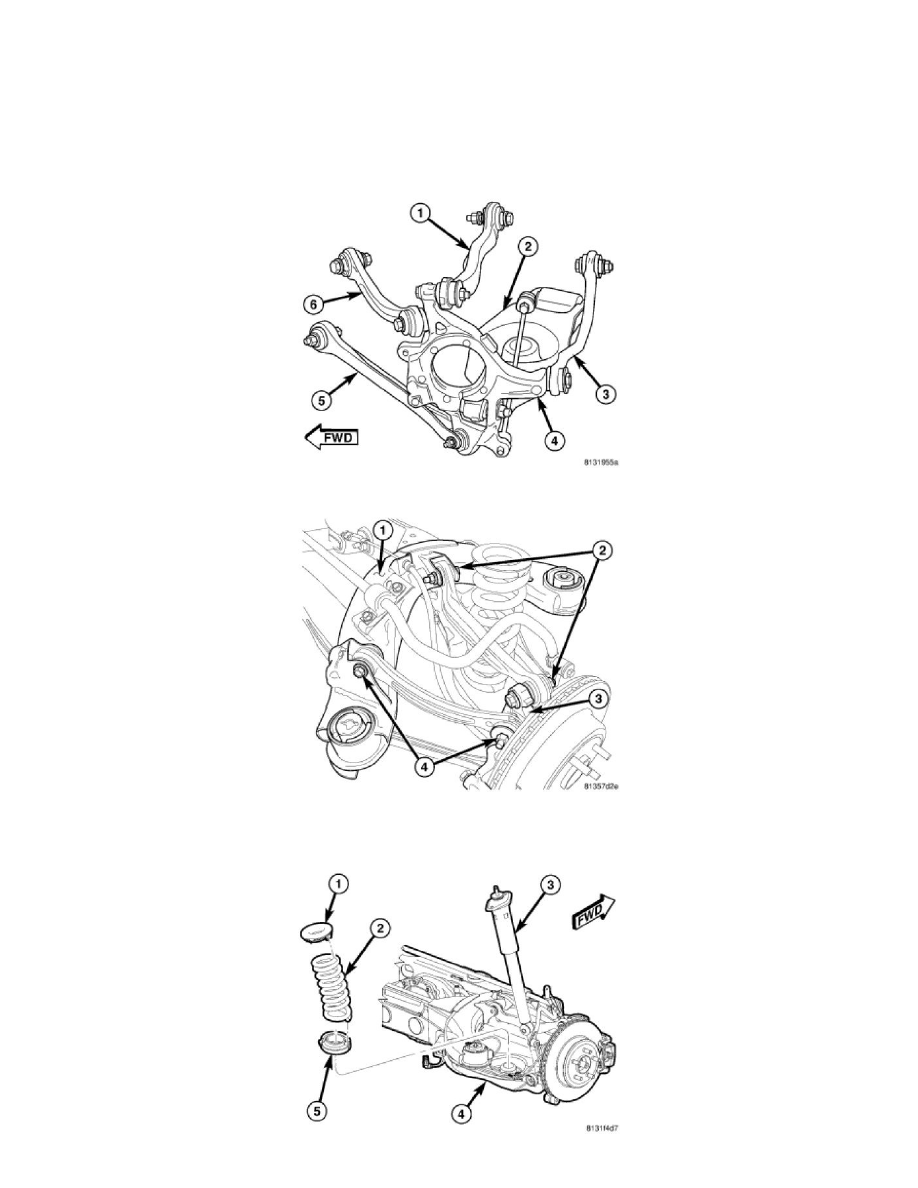

12. Remove nut and bolt (4) mounting link to knuckle (3).
13. Remove nut and bolt (4) mounting link to crossmember (1).
14. Remove link.
Installation
INSTALLATION
NOTE: When installing tension link, although link (6) is same end-to-end, make sure that center bow is facing downward.
1. Place link in bracket on crossmember (1). Install bolt and nut (4) at crossmember (1) as shown. Do not tighten bolt at this time.
2. Install bolt and nut (4) mounting link to knuckle (3) as shown. Do not tighten bolt at this time.
