Magnum V8-5.7L VIN H (2005)

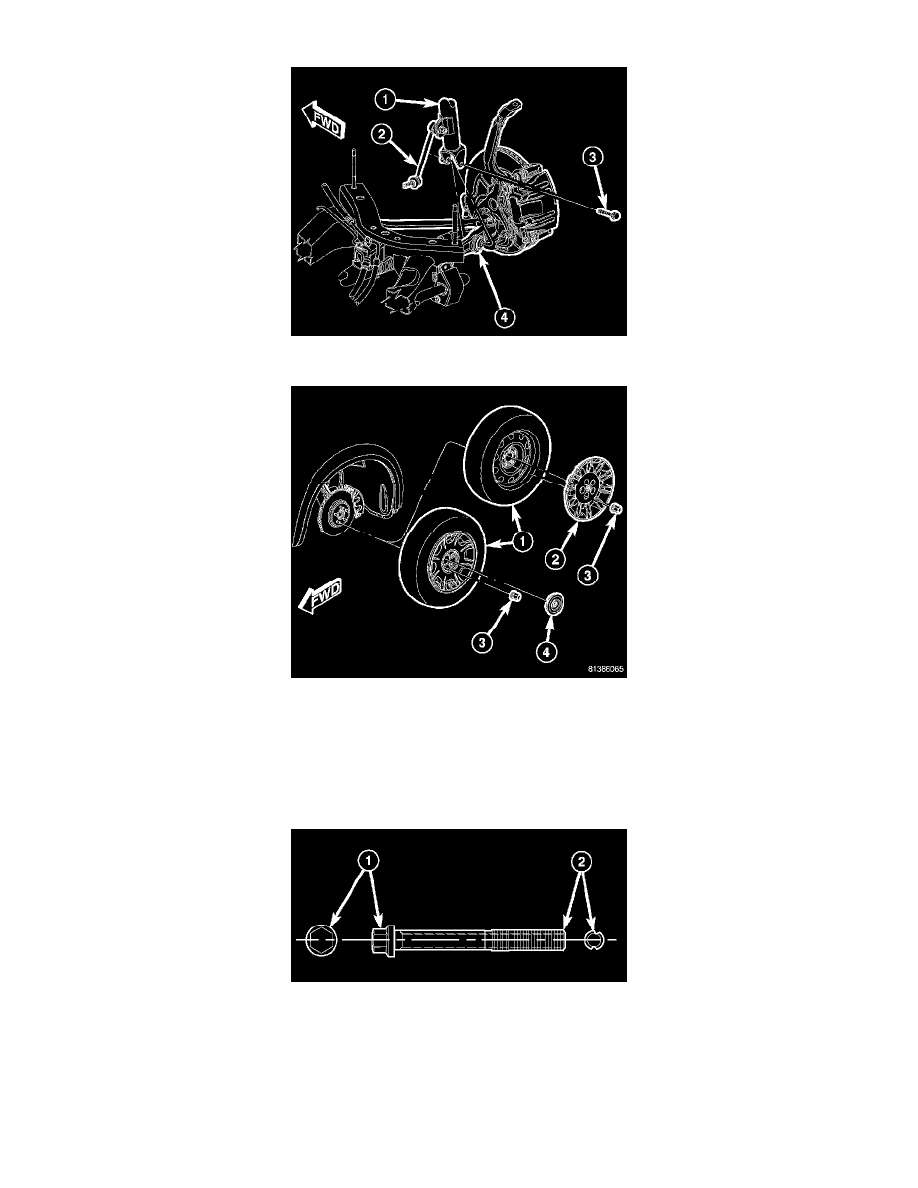

5. Attach wheel speed sensor cable and routing clip (2) to brake flex hose routing bracket (5).
6. Install lower shock mounting bolt (3) attaching shock assembly (1) to lower control arm (4). Do not tighten bolt at this time.
7. Install tire and wheel assembly (1). Tighten wheel mounting nuts (3) to 150 Nm (110 ft. lbs.) torque.
8. Lower vehicle.
CAUTION: Because stabilizer bar is disconnected at cradle it is important to use extra care while moving vehicle to alignment rack/drive-on lift.
9. Position vehicle on an alignment rack/drive-on lift.
10. Tighten lower shock mounting bolt (3) to 174 Nm (128 ft. lbs.) torque.
