Neon L4-122 2.0L DOHC VIN Y SFI (1997)
Lateral Stabilizer Rod: Service and Repair
GENERAL INFORMATION

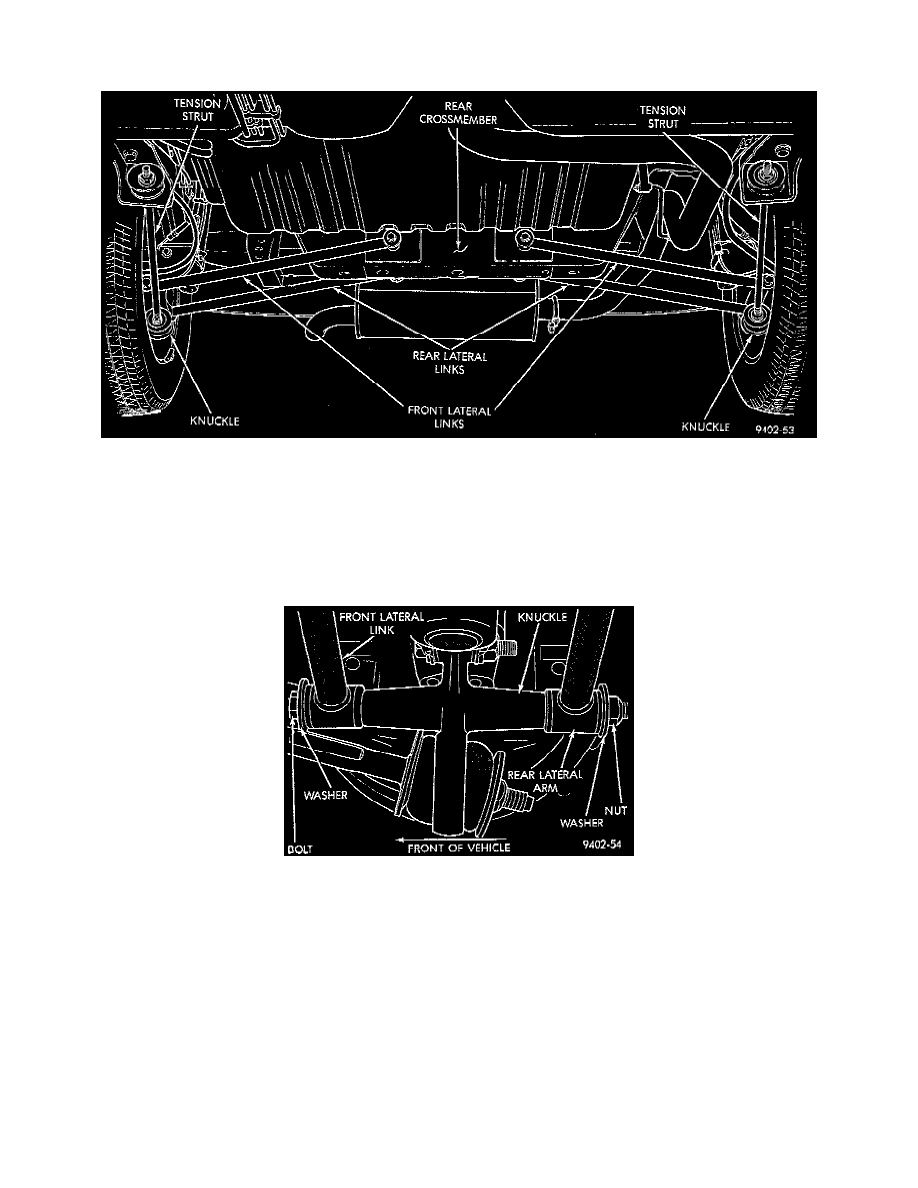

The rear suspension lateral links are only serviced as complete assemblies. The isolator bushings used in the lateral links are not serviced as
separate components. The rear lateral link assemblies are unique, having different size bushings to accommodate the rear Toe adjustment cams.
The rearward lateral links, must be installed with small bushing sleeve at knuckle and large bushing sleeve at rear crossmember. This is required to
accommodate the rear Toe adjustment cam.
REMOVE
1. Raise vehicle on jackstands or centered on a frame contact type hoist.
2. Remove the rear wheel and tire assembly from the side of the vehicle requiring lateral link removal.
3. Remove the nut, bolt and washers attaching the lateral links to the knuckle.
